- Product Description
- Product Parameters
Basic Info.
Application
Heater, Cooler, Vaporizer, Condenser
Principle
Regenerative Heat Exchanger
Style
Cast-In Type
Material
Stainless Steel
Condition
New
Gasket Material
NBR/EPDM/Viton/HNBR/Hepdm
Place of Origin
Shanghai, China
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Showroom Location
None
Plate Thickness
0.5mm, 0.6mm
Brand
Jiangxing
Plate Material
SS304, SS316L, Smo254, Titanium
Type
Heat Exchanger
Video Outgoing-Inspection
Provided
Frame Material
Paint-Drying
Applicable Industries
Food & Beverage Factory, Construction Works
Packing
Plywood Case
Business Type
Manufacturer
Machinery Test Report
Provided
Transport Package
Plywood Case
Trademark
Aibao
Origin
China
Production Capacity
10000 Unit/Units Per Month
Product Description
| Model | AreE | Size A*B | Size C*D | Size E | |
| M3 | 0.03 | 429*125 | 357*60 | φ29 | |
| M6 | 0.13 | 747*248 | 640*140 | φ59 | |
| M6M | 0.13 | 747*248 | 640*140 | φ58 | |
| M10B | 0.22 | 871*371 | 719*223 | φ97 | |
| M10M | 0.22 | 871*371 | 719*223 | φ98 | |
| M15B | 0.62 | 902*496 | 1294*298 | φ140 | |
| M15M | 0.62 | 1498*496 | 1294*299 | φ140 | |
| MX25M | 1.48 | 2246*746 | 1939*439 | φ230 | |
| MX25B | 1.5 | 2246*746 | 1939*439 | φ230 | |
| Plate Material | SS304 SS316L Titanium SMO254 C276 | ||||
Plate Thickness | 0.5mm/0.6mm | ||||
| Gasket Materia | NBR(applicable temperature -15~120ºC) HNBR(applicable temperature -15~140ºC) =PDM(applicable temperature -25~150ºC HEPDM(applicable temperature -25~170ºC) Viton/FPM(applicable temperature-5~180ºC) NEOPREKE(appllicable temperature -5~1307 VNQ(applicable temperature -65~250ºC | ||||

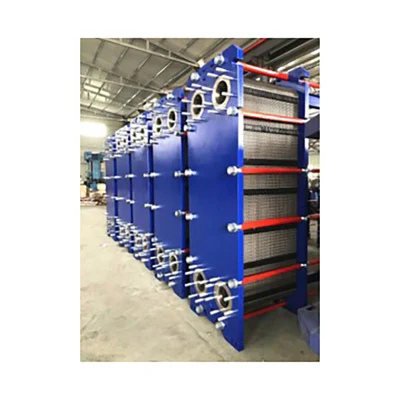

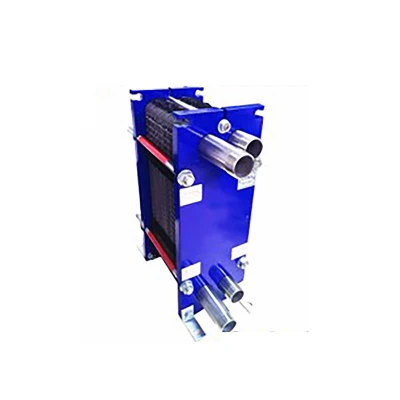

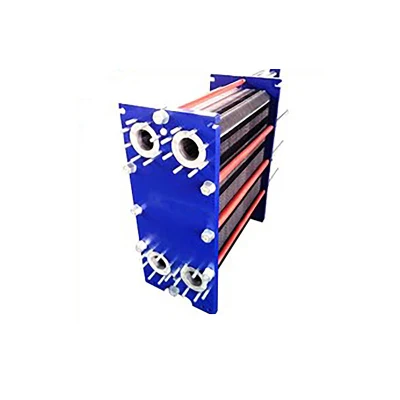

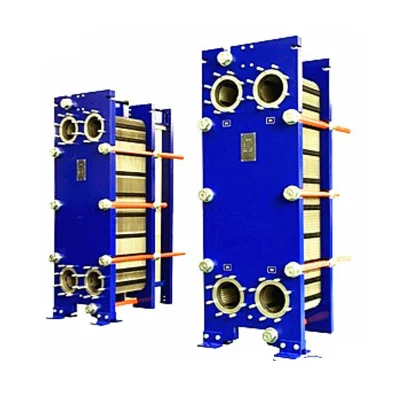

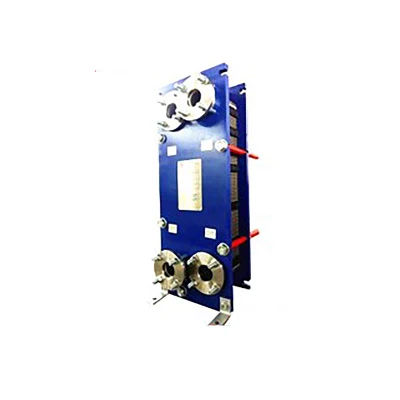

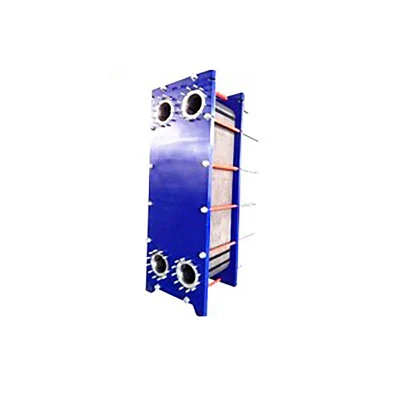

A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat betweentwo fluids. lt is composed of fixed pressure plate, flexible pressure plate,top and bottom guid barsback post, support foot,heat exchanger plate,gasket,roller, tightening bolt,nut, lock washer and framefoot. lt has a major advantage over a conventional heat exchanger in that the fluids are exposed toa much larger surface area because the fluids are spread out over the plates. lt is the most efficienttype of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. Weoffer competitive heat exchanger solutions that surpass other OEMs in performance. maintenanceand economy. The models we provide can replace the world famous manufacturers.A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat betweentwo fluids. lt is composed of fixed pressure plate, flexible pressure plate,top and bottom guid barsback post, support foot,heat exchanger plate,gasket,roller, tightening bolt,nut, lock washer and framefoot. lt has a major advantage over a conventional heat exchanger in that the fluids are exposed toa much larger surface area because the fluids are spread out over the plates. lt is the most efficienttype of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. Weoffer competitive heat exchanger solutions that surpass other OEMs in performance. maintenanceand economy. The models we provide can replace the world famous manufacturers.
FAQ
1.Can I have your samples?
Yes, we can provide samples for you to check our quality
2. What is your leading time for the products I need?
Generally 7 working days. lt depends on the quantities you request.
3. Do you have your own factory?
Yes, welcome to visit our factory and check our products.
4.What is the warranty for your products?
We provide one year warranty for all the items we sold.
5.What payment terms do you accept?Trade Assurance/TT/ Letter of Credit/ Western Union
