Basic Info.
Model NO.
6-6T01R-202G
Bearing Type
Ball Bearing
Surface Treatment
Zinc Plated
Brand
Carsun
Maximum Load
450kg
Specification
6inch
Diameter
150mm
Thickness
51mm
Top Plate Size
159*114mm
Top Plate Thickness
6.5mm
Installation Aperture
14.2mm
Hole Distance
133*86mm
Transport Package
Carton Packing, by Sea
Trademark
CARSUN
Origin
China
HS Code
8302200000
Production Capacity
800PCS/Day
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 35.00cm
Package Gross Weight
17.000kg
Product Description

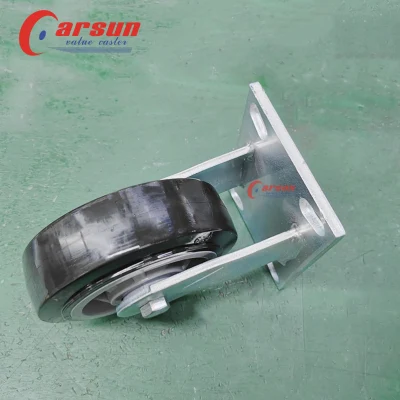

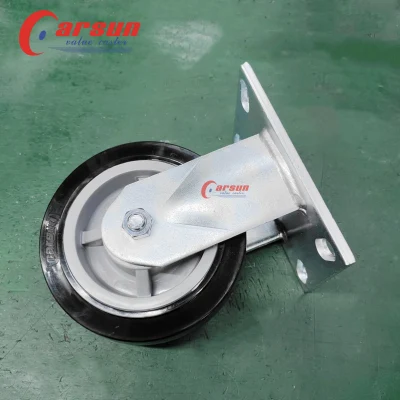

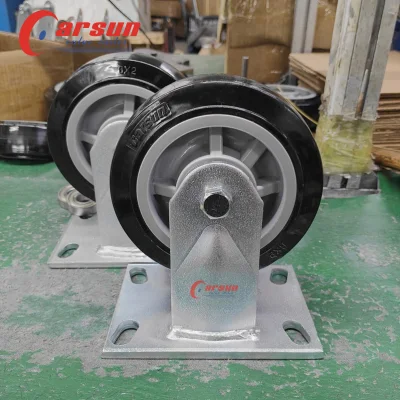

150MM Ultra Heavy Industrial Casters 6 Inch Modified Nylon Wheel Rigid Casters
We are a professional manufacturer of caster wheels.
We can produce different types of casters according to your requirements.
We are the experienced caster wheel supplier.
OEM ODM etc are all welcome.
Packing/color/size/material are all available.
For more product information, please contact us.
| Size | Wheel material | Bearing | Wheel Diameter& Wide | Load capacity | Top Plate size | Bolt hole spacing | Bolt hole diameter | Overall height | Product No |
| 4inch | Nylon | Double bearing | 100*51mm | 295kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T01S-201G |
| 4inch | Nylon | Roller bearing | 100*51mm | 295kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T01S-201E |
| 4inch | Nylon | Delrin bearing | 100*51mm | 295kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T01S-201C |
| 5inch | Nylon | Double bearing | 125*51mm | 340kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T01S-201G |
| 5inch | Nylon | Roller bearing | 125*51mm | 340kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T01S-201E |
| 5inch | Nylon | Delrin bearing | 125*51mm | 340kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T01S-201C |
| 6inch | Nylon | Double bearing | 150*51mm | 410kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T01S-201G |
| 6inch | Nylon | Roller bearing | 150*51mm | 410kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T01S-201E |
| 6inch | Nylon | Delrin bearing | 150*51mm | 410kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T01S-201C |
| 8inch | Nylon | Double bearing | 200*51mm | 450kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T01S-201G |
| 8inch | Nylon | Roller bearing | 200*51mm | 450kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T01S-201E |
| 8inch | Nylon | Delrin bearing | 200*51mm | 450kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T01S-201C |
We not only produce various standard casters commonly used in the industry, but also provide customized services according to customers' requirements.
We can produce castors that meet the EU ROHS environmental protec tion standards, and also produce medical castors that meet the international SGS medical testing standards. Since its inception, the company has established a perfect quality management system and successfully passed the ISO9001:2015 quality management system demonstration. In order to effectively ensure the product quality, the company has prepared various caster testing facilities to make it clear that the products must be tested in strict accordance with the quality management standards before leaving the factory, such as product life test, salt spray test, impact resistance test and so on.
1.Q: Are you manufacture or trading company?
A: We are manufacture. Our factory has been specializing in all kinds of caster wheels since 2014.
2.Q: Where is your factory? Can I visit ?
A: Our factory is located in Dongguan, Guangdong China. It's an hour's drive from Guangzhou Baiyun International Airport.You are warmly welcome to visit whenever you are available.
3.Q: What is your delivery time?
A: In general, within 20 days. It also depends on the order quantity.
4.Q: What is the term of payment?
A: Payment terms: 50% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.
5.Q: Can I get some samples? And what's the timing?
A: Yes, samples are available at any time. We charge some sample cost and will return it during the next order.
6 .Q: How can your factory control the quality?
A: Quality is at the forefront of our commitments to our customers always. We have strict quality management process from raw
material to finished product. Details please ref below:
-- Material Vendor Assessed.
-- Incoming material inspected(IQC)
-- In-line product 100% Check(QC)
-- 100% inspect before packing(QC)
-- According to standard or customer's requirement to check random after final packing to ensure the quality(QA)
7. Q: What's the MOQ?
A:Normally we take the order no matter it's big or small. If your qty is less than 5pcs per SKU, we will arrange it in our sample room specially.
8. Q: Can I make my own brand?
A: Yes, we do both OEM and ODM, so you can make your own logo on the bags.
