Top Grade Heat Insulation Ceramic Fiber Roll for Industrial Furnace

Discover our top-grade heat insulation ceramic fiber roll for industrial furnace. We are a leading factory specializing in high-quality insulation products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
Overview

Basic Info.

Model NO.
HP(high pure)
Length
3600mm, 7200mm, or Other Customer′s Request
Width
600mm, 610mm
Thickness
10mm~50mm
Chemical Composition
Al2O3, Sio2
Working Temperature
1100c
Maximum Working Temperature
1260c
Density
96kg/M3 or 128kg/M3 or 160kg/M3
Color
White
Fiber Diameter
3-5um
Place of Original
Shandong
Transport Package
Woven Bag or Carton
Specification
7200*600*25mm or 3600*600*50mm
Trademark
DKJL
Origin
Shandong
HS Code
68061010
Production Capacity
3000 Ton/Tons Per Month

Product Description

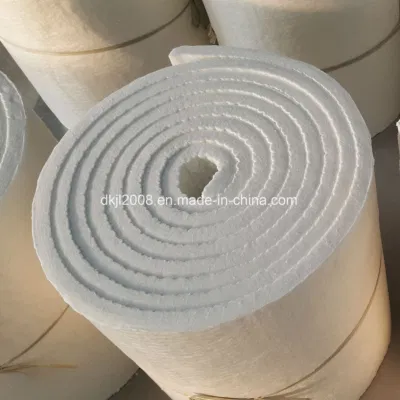

Top grade heat insulation ceramic fiber roll for industrial furnace



Product Description


Ceramic fiber blanket is made of special ceramic long-fiber that is produced by melting very pure raw materials in double surface needing process.



It also named aluminum silicate fiber blanket, because their main component is aluminum. It's a new type of fire-resisting and heat-insulating materials with white color and accurate dimension.

This product does not contain any adhesive to ensure their good stability in high temperature or low temperature environment.

Their Classification Temperature: 1050-1600ºC.



Features and advantage

Excellent chemical stability

Excellent heat stability

Excellent pull resisting strength

Low heat conductivity

Low thermal capacity

Excellent heat insulation performance



Application

Industry furnace wall lining

Back lining material

Fire prevention

High-temperature tube heat insulation material

Module/folding block processing material

Filling and sealing material in high temperature environment.

Sound-absorbing/high temperature filtration materials.



Technical Index

product code

MYTX-PT-02

MYTX-BZ-02

MYTX-GC-02

MYTX-GL-02

MYTX-DG-02

MYTX-HG-02

Heating permanent linear change(%)

950ºC×24h≤-4

1000ºC×24h≤-4

1100ºC×24h≤-4

1200ºC×24h≤-4

1250ºC×24h≤-4

1350ºC×24h≤-4

heat conductivity(An average of 500ºC)W/(m.k)





≤0.153







Content of slag(Ø≥0.212mm)(%)





≤15







Pull resisting strength (Thickness25mm)(Mpa)





≥0.04







Theoretical volume density ( kg/m3) kg/m3

96/128

96/128

96/128

96/128

96/128

96/128

Al2O3

≥40

≥43

44-47

51-53

43-45



Al2O3+SiO2

≥95

≥96

≥98

≥99

≥90



Al2O3+SiO2+ZrO2











≥99

ZrO2











≥15

Fe2O3

<0.5

<0.5

≤0.3

≤0.3





Na2O+K2O+Fe2O3

<0.9











Product specification (mm)(customized according to customer demand)

Normal length and width, thickness 6mm-60mm

Packing form

Woven bag or carton

Quality and environment system certification

ISO9001-2008, ISO14001-2004


Top Grade Heat Insulation Ceramic Fiber Roll for Industrial Furnace


Packaging & Shipping

Packingwoven bag or carton.

Shipping: By vessel or by train from any Chinese port, Samples can be delivered by International express.


Top Grade Heat Insulation Ceramic Fiber Roll for Industrial Furnace
Our service:

1. Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.

2.Sample evaluation

Sample and trial order are accepted for the quality evaluation.

3. Strict quality control

Arrange production on time and control quality strictly.

4. Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.

5. Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service



Company Information
Top Grade Heat Insulation Ceramic Fiber Roll for Industrial Furnace

 DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

Top Grade Heat Insulation Ceramic Fiber Roll for Industrial Furnace Top Grade Heat Insulation Ceramic Fiber Roll for Industrial Furnace
Top Grade Heat Insulation Ceramic Fiber Roll for Industrial Furnace Top Grade Heat Insulation Ceramic Fiber Roll for Industrial Furnace





FAQ:

1. How can I get your prompt quotation?

 We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.


2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your condition.



3. Which payment terms can you accept?
T/T, LC, Western Union, MoneyGram are available for us.



4.After an order is placed, when to deliver?
15-25days after confirming the order.



5. Does your company accept customization?
We accept OEM service.



6. How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.



7. What is the HS code?

The HS code is 68061010.

  Welcome your inquiry and expect to provide satisfactory products and services for you.
