Basic Info.
Model NO.
customization
Maximum Load
Reference Below Data Sheet
Specification
Reference Below Drawing, Reference below drawing
Diameter
Reference Below Drawing
Thickness
Reference Below Drawing
Side Plate Size
165X114
Bolt Hole Pattern
72.5X(78.5 To118.5)mm
Adjustable Height
400 to 457mm
Bolt Hole Dia.
10mm
Color
Silver
Foot Pedal Diameter
90 mm
Application
Floor Lock
Transport Package
Paper Box
Trademark
STARDRAWING
Origin
China
Production Capacity
5000pieces/Month
Product Description

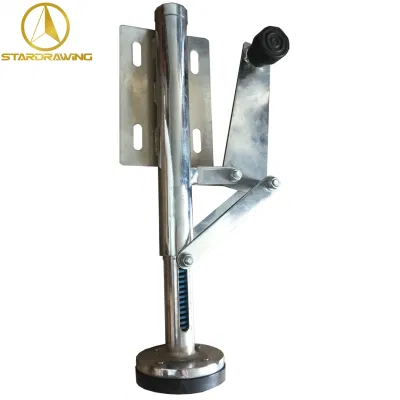

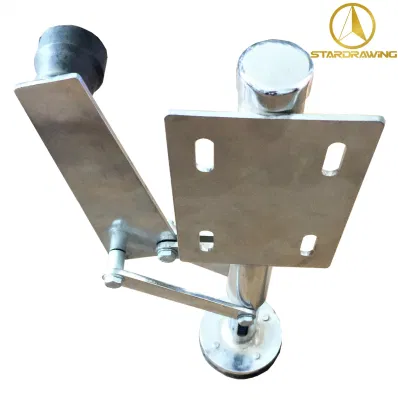

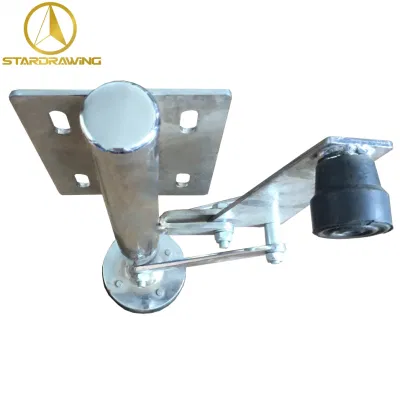

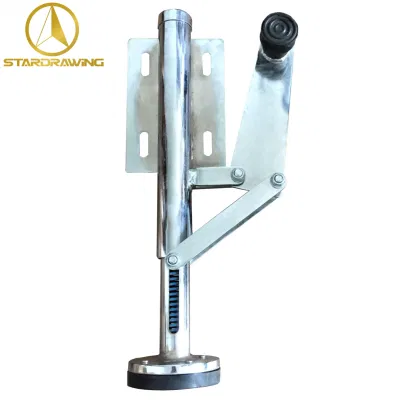

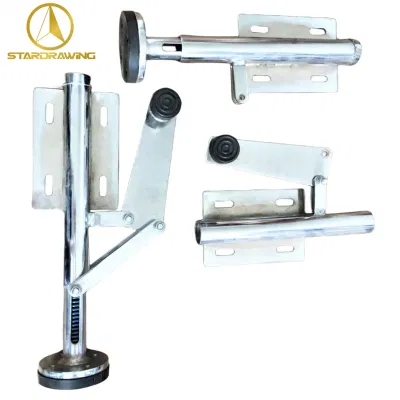

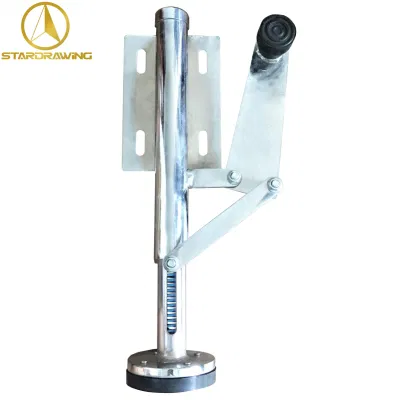

STARDRAWING Side Mounting Adjustable Height Floor Truck Locks for Caster Wheel
STARDRAWING Side Mounting Adjustable Height Floor Truck Locks for Caster Wheel
This unique Side-mounted Floor Lock can be mounted to the side of a cart that does not permit flush mounting underneath. Spring-loaded foot operation locks and releases easily. Rubber bottom pad offers maximum gripping power. Rust-resistant Chrome plated steel/stainless steel construction for food service and healthcare related cart applications.If you don't see what you want, STARDRAWING's engineering team can custom design a floor lock for any application!
1)Spring loaded pad accommodates uneven floors
2)Simple foot pressure immobilizes equipment
3)Simple kick rod releases floor lock
4)Independent brake system can be installed to any convenient on the cart
5)Holds floor truck in place
6)Non-slip rubber base
7)Floor locks aid in immobilizing equipment
8)Not designed to lift or directly support weight
9)Rust-resistant Chrome plated steel/stainless steel construction for food service and healthcare related cart applications
10)unique Side-mounted Floor Lock can be mounted to the side of a cart that does not permit flush mounting underneath
2)Simple foot pressure immobilizes equipment
3)Simple kick rod releases floor lock
4)Independent brake system can be installed to any convenient on the cart
5)Holds floor truck in place
6)Non-slip rubber base
7)Floor locks aid in immobilizing equipment
8)Not designed to lift or directly support weight
9)Rust-resistant Chrome plated steel/stainless steel construction for food service and healthcare related cart applications
10)unique Side-mounted Floor Lock can be mounted to the side of a cart that does not permit flush mounting underneath
| side plate size(MM) | Adjustable height(MM) | Bolt hole Dia.(MM) | Foot pedal diameter |
| 165x114 | 400-457 | 10mm | 90 mm |
STARDRAWING Side Mounting Adjustable Height Floor Truck Locks for Caster Wheel may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.
Dear : Can I get free caster wheel samples from Stardrawing ?STAR : We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee for such good products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen, international express type(2~3days) or economic type (4~5days).
Dear : What is your payment terms of caster ?STAR : It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for this regular payment manner.
Dear : What about your lead time ?STAR : Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.
Dear : Is it OK to print my logo on casters ?STAR : Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton Dear : How can I trust the quality of your casters ? STAR : We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do a series of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place a trial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.
Dear : What about your lead time ?STAR : Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.
Dear : Is it OK to print my logo on casters ?STAR : Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton Dear : How can I trust the quality of your casters ? STAR : We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do a series of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place a trial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.
