Basic Info.
Model NO.
Customization
Maximum Load
Reference Below Data Sheet
Specification
Reference Below Data Sheet, Reference below data sheet
Diameter
Reference Below Data Sheet
Thickness
Other
Mounting Type
Reference Below Data Sheet
Fork Material
Steel
Core Material
Polyolefin
Top Plate Size
Reference Below Drawing
Transport Package
Paper Box
Trademark
STARDRAWING
Origin
China
Production Capacity
5000pieces/Month
Product Description

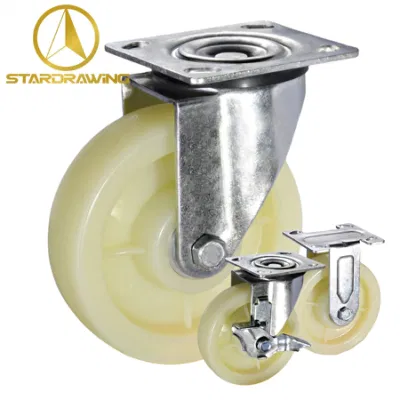

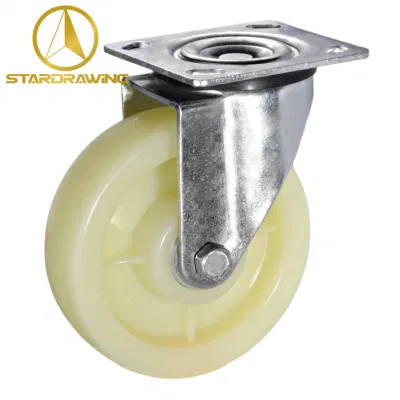

STARDRAWING 4/5/6 inch PP Caster Wheels Plastic Caster
STARDRAWING 4/5/6 inch PP Caster Wheels Plastic Caster
We use high strength PP material, Excellent competitive price. Designed for hard impacts and heavy duty. Very light in weight, yet the impact strength of this wheel is far superior to hard rubber wheels. It offers superior resistance to most oils, chemicals, grease, gasoline, cooking fats and acids. In addition, the wheel is stain resistant, non-marking and provides zero water absorption.
1)New innovation High-tech PP2)Economical and light weight injection molded wheel
3)High shock impact resistance
4)Highly resistance to chemicals and solvents
5)Non-marking, floor protective
6)Abrasion resistance
7)Highly versatile wheel
| Caster Size | Mounting Type | Wheel Diameter (MM) | Tread Width (MM) | Mounting Height (MM) | Rotation Radius (MM) | Load Capacity (KG) |
| 4 Inch PP Caster | Plate Swivel | 100 | 42 | 131 | 91 | 200 |
| Plate Rigid | ||||||
| Plate with Side Brake | 91 | |||||
| 5 Inch PP Caster | Plate Swivel | 125 | 42 | 155 | 103 | 250 |
| Plate Rigid | ||||||
| Plate with Side Brake | 103 | |||||
| 6 Inch PP Caster | Plate Swivel | 150 | 42 | 181 | 115 | 300 |
| Plate Rigid | ||||||
| Plate with Side Brake | 115 |
Dear : Can I get free caster wheel samples from Stardrawing ?
STAR : We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee for such good products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen, international express type(2~3days) or economic type (4~5days).
Dear : What is your payment terms of caster ?
STAR : It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for this regular payment manner.
Dear : What about your lead time ?
STAR : Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.
Dear : Is it OK to print my logo on casters ?
STAR : Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton
STAR : Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton
