Basic Info.
Product Description
customer service:
The storage unit can be adjusted according to customer requirements for size and surface treatment. Our storage boxes can be adjusted accordingly. In addition, the color of the powder coating can be adjusted according to personal preference.

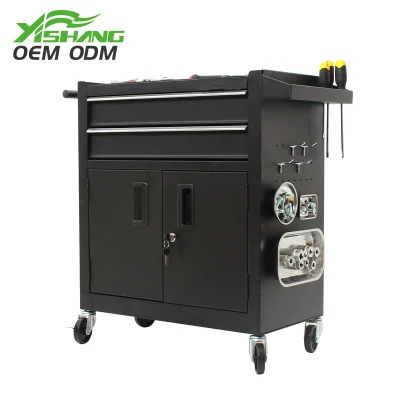

Model No. | YS-2100163 |

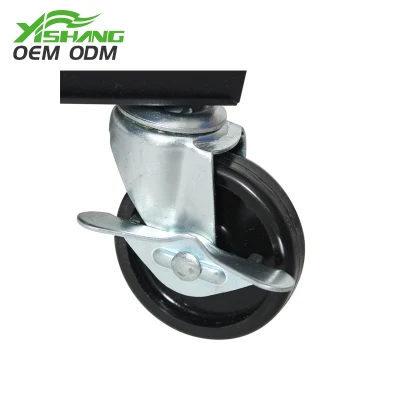

Dimensions | Full size including wheel height:685 X 465 X 955 mm; 1 and 2 the drawer size: 580 X 400 X 55 mm |
Material | SPCC, stainless steel, galvanized steel or aluminum. |
Color | White, black or other colors |
Surface Treatment | Powder coating for SPCC and galvanized steel. Brushing, polishing or electroplating for stainless steel. |
Features | High precision, tolerance is only 0.1 mm. |
| Sample | Welcome to customize a metal part sample to inspect the quality. |
Services | Professional custom sheet metal fabrication service. |

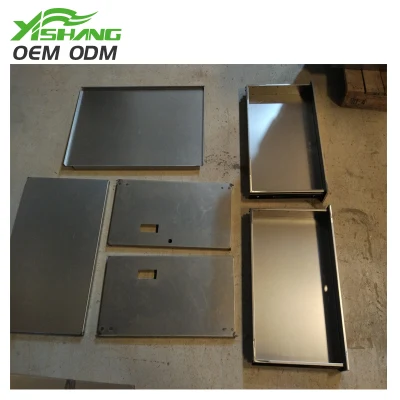

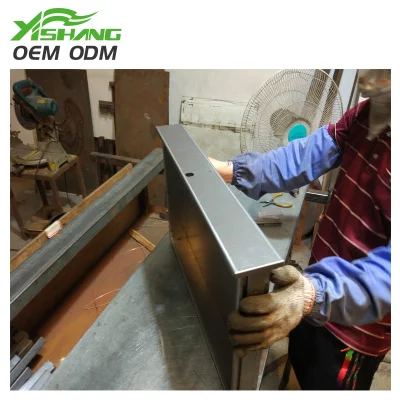

 | Unloading: Check whether the production drawings are consistent with the processed materials, and use a large laser cutting machine to cut the material. Features: High cutting accuracy ± 0.1mm, less cutting burrs. Molding: Check whether the processed workpiece is consistent with the production drawing, and use the hydraulic CNC bending machine to operate. Features: The size difference is within +-0.2mm, and the angle difference is within +-0.5mm. |

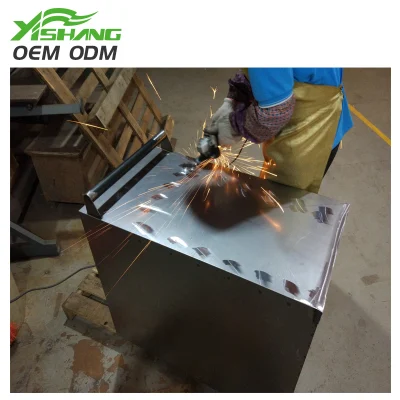

 | Welding process: First check whether the component size is consistent with the details of the drawing. The splicing position is straight and flat before and after welding. The welding solubility is up to 100% (steel current 35-50V iron current 40-50V) to ensure that the welded components are not holed, not chipped, not shadowed, and not deformed. |

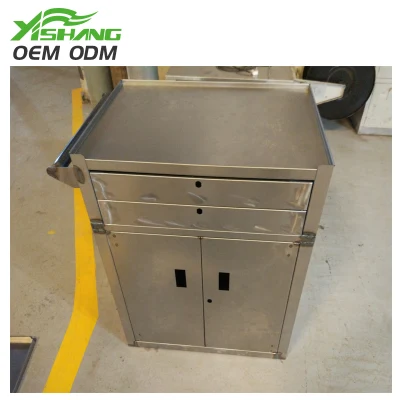

 | Double door: 1.0mm thick cold-rolled steel plate. Double-door design, the inner part has two floors, each with a height of 260 mm. The interior can be equipped with movable shelves, large use of space, and safe storage of data and tools. Suggestion: The size of the cabinet can be customized according to requirements. You can adjust the height of the movable shelf according to the size of the stored items, which is easy and flexible. Screen printing: Use the basic principle of screen-printing part of the screen and text to penetrate the ink, and non-graphic part of the screen to not penetrate the ink to print. You can choose the color you like to customize the screen template according to the international Pantone color card. Advantages: bright colors, cheap price and long shelf life |
Package and Transportation
The package method of the sheet metal fabrication part is that whtie foam, plastic bag and export KAA carton which can protect the metal products from damage.
Generaly the sheet metal fabrication part is bulk packed, can be printed with buyers' own trademarks. Customization of packing configuration is warmly welcomed.
Each package will be tested for collision to assure it is strong enough and won't have problem during the transportation.
