- Overview
- Product Description
Basic Info.
Model NO.
P160-76F150X50S
Bearing Type
Ball Bearing
Surface Treatment
Zinc Plated
Brand
Double Rhombus
Maximum Load
550kg
Specification
6inch, 380x300x180mm
Diameter
150mm
Thickness
50mm
Style
Rigid
Customized Support
OEM, ODM
Color
Orange,Yellow
Application
Industrial Equipment, Trolley
Transport Package
Carton
Trademark
Double Rhombus
Origin
China
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
38.00cm * 30.00cm * 18.00cm
Package Gross Weight
14.100kg
Product Description

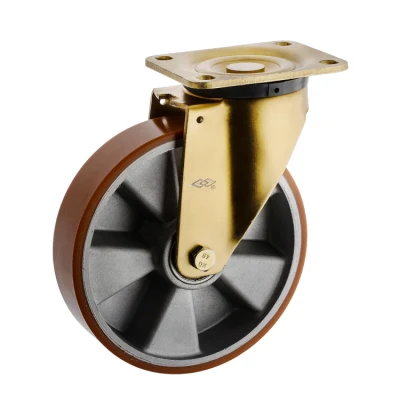

150mm high load industrial equipment 6inch swivel brake type PU wheel castor 5" 6" 6.4" 8" 10" heavy duty caster swivel wheels
| Brand | Double Rhombus | Series | Heavy duty industrial Caster |
| Model No. | P160-76F150X50S | Load Capacity(kgs) | 550kgs |
| Wheel diameter(mm) | 150mm | Width of Tread(mm) | 50mm |
| Offset(mm) | 55mm | Hole size(mm) | 12mm |
| Overall height(mm) | 194.5mm | Size of plate(mm) | 135x110x6mm |
| Bearing | Ball bearing | Bolt hole spacing(mm) | 105x80mm |
Walking Performance Test
Test standard according to EN12532, 8inch heavy duty PU caster sample with 550kg load, 5mm barriers, walking 3 minutes, stop 1 minute, with 4km/h speed,
go over the barriers for 500 times, then remove the barriers, continue to walking 119 minutes, the PU wheels need to walk total 9.425kms,
after testing, sample no abrasive wear, the wheel is qualified.
after testing, sample no abrasive wear, the wheel is qualified.

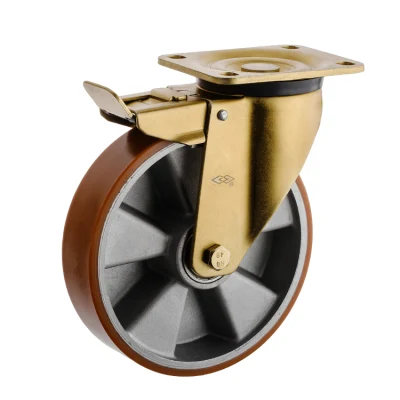

5000 times Brake Fatigue Test
Long service life period
Test standard according to EN12532, the rubber industrial castor Pass 5000 times Fatigue Test for Locking Device.
Up to 5000 brake applications
High cost performance
High quality surface treatment,with good corrosion resistance
Yellow zinc plated style White zinc plated style
Thickened presed steel housing castor,5-10inch size 400-800kgs heavy caster
Product Application-widely use heavy duty load industrial PU caster
Company Profile
Hubei Space Double Rhombus Logistics Technology Co., LTD. is a large-scale professional manufacturer of casters, hand trucks, furniture transporters, airport trolley, airport chair, queue barriers and series of logistics products,The company was founded since 1978, has experienced 40 years.Our company has I S O 9 0 0 1 certification, also has BSCI, GS, VPA, SGS, REACH, ROHS, PAHS certificate. In 1993, the national Standard Bureau entrusted the corporation to compile the National Standard (GB/T1 4 6 8 7-2 0 11) which is the standard for caster production in China today.
