Basic Info.
Model NO.
KMXX-M7
Wheel Size
75X32mm/100X32mm/125X32mm
Steel Bracket Thickness
3.0mm
Capacity From
105kgs to 150kgs
Material
Nylon
Transport Package
50PCS/CTN for 3" 40PCS/CTN for 4" 30PCS/CTN for 5"
Specification
3"-5"
Trademark
kezhi
Origin
China
HS Code
8716900000
Production Capacity
50000/Month
Product Description

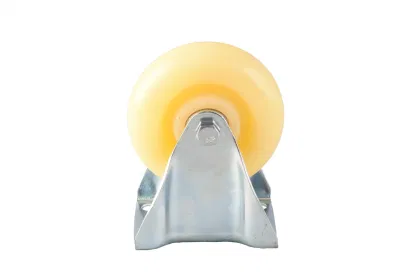

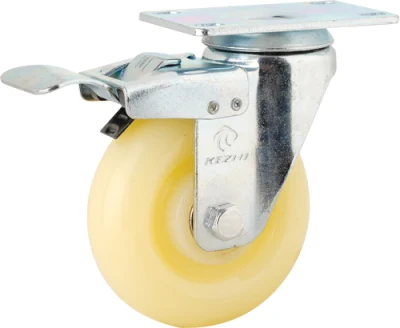

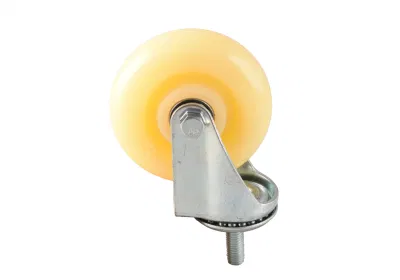

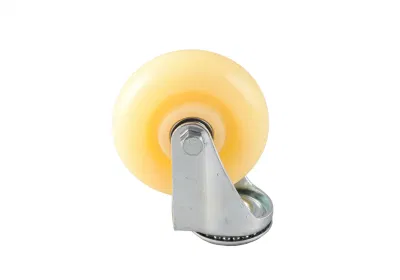

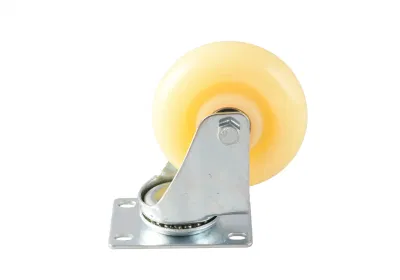

M7 Medium Duty Type Fixed/Swivel/Brake/Thread Stem/Bolt Hole Type Nylon Caster
Three Size available: 3'', 4", 5"
[General Feature]:
*Wheel Material: Nylon
*Color in Yellow
*Fixed/Swivel/Brake, Thread Stem/Bolt Hole,Top Plate
*Double ball bearing
*Housing be made of pressed steel
*3.0mm thickness for Steel plate
*Zinc plating or Electrophoresis finish
*High shock absorption /High abrasion resistance/ High Stain resistance
*Top quantity Competive price
Three Size available: 3'', 4", 5"
[General Feature]:
*Wheel Material: Nylon
*Color in Yellow
*Fixed/Swivel/Brake, Thread Stem/Bolt Hole,Top Plate
*Double ball bearing
*Housing be made of pressed steel
*3.0mm thickness for Steel plate
*Zinc plating or Electrophoresis finish
*High shock absorption /High abrasion resistance/ High Stain resistance
*Top quantity Competive price
| Item No. | Wheel D. | Wheel W. | Capacity | Setting Height | Top Plate Size | Hole Spacing | Material |
| KM31-M7 | 75mm | 32mm | 105kgs | 108mm | 95*66mm | 75*45mm | Nylon |
| KM41-M7 | 100mm | 32mm | 135kgs | 133mm | 95*66mm | 75*45mm | Nylon |
| KM51-M7 | 125mm | 32mm | 150kgs | 157mm | 95*66mm | 75*45mm | Nylon |
