Basic Info.
Model NO.
KEX5-H15
Product Series
Scaffolding Series Caster
Wheel Size
150*50mm/200*50mm
Applicable Bracket
Threaded Stem/Inserted Link
Material
Black Rubber
Transport Package
60PCS/CTN
Specification
Stem Brake
Trademark
kezhi
Origin
China
HS Code
8302200000
Production Capacity
50000/Month
Product Description

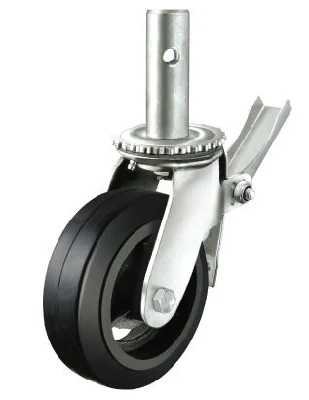

KEX5-H15 Scaffolding Series Black Rubber Caster
Two Size available : 6", 8"
[General Feature]
1. Wheel Size : 150*50mm/200*50mm
2. Capacity: From 400-450kgs
3. Caster material:Black rubber wheel tyre with nyloncore, blue zinc plated, bolt hole swivel brake housing, with Precision double ball bearing with roller bearing and double ball bearing

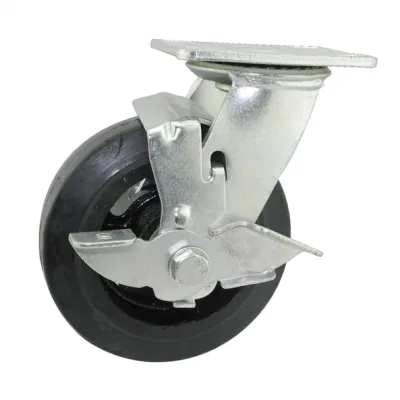

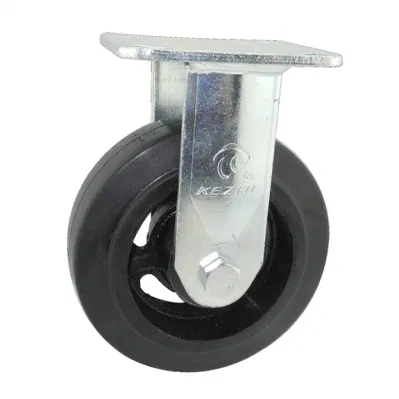

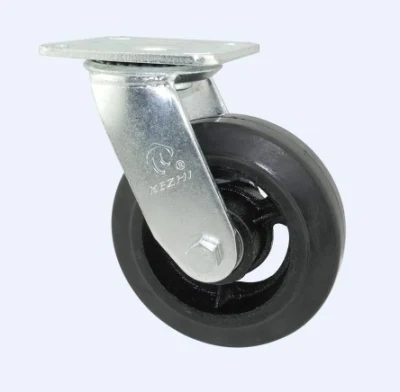

4. If u wana other caster, top plate swivel brake type, fixed type, threaded stem type, are available for your selection.
5. Zinc plating and Black Electrophoresis finishing available
6. Caster wheel can be changed to red PP., black rubber
7. Applications: Handcart, transport vehicle, Trolley, general usage in industrial, etc.
8. Assorted colors (optional)
9. inserted link in M28*30mm
10. Rubber material in excellent & middle grade for selection.
High shock absorption/High abrasion resistance/ High Stain resistance
Two Size available : 6", 8"
[General Feature]
1. Wheel Size : 150*50mm/200*50mm
2. Capacity: From 400-450kgs
3. Caster material:Black rubber wheel tyre with nyloncore, blue zinc plated, bolt hole swivel brake housing, with Precision double ball bearing with roller bearing and double ball bearing
4. If u wana other caster, top plate swivel brake type, fixed type, threaded stem type, are available for your selection.
5. Zinc plating and Black Electrophoresis finishing available
6. Caster wheel can be changed to red PP., black rubber
7. Applications: Handcart, transport vehicle, Trolley, general usage in industrial, etc.
8. Assorted colors (optional)
9. inserted link in M28*30mm
10. Rubber material in excellent & middle grade for selection.
High shock absorption/High abrasion resistance/ High Stain resistance
| Wheel Dia | Tread Width | L.Capacity | L.Height | Thread Stem Size |
| 150mm | 50mm | 400kgs | 190mm | 35*100mm |
| 200mm | 50mm | 450kgs | 240mm | 35*100mm |
