Basic Info.
Model NO.
4-4T01S-301G
Bearing Type
Ball Bearing
Surface Treatment
Zinc Plated
Brand
Carsun
Maximum Load
304kg
Specification
4inch/5inch/6inch/8inch
Diameter
100mm/125mm/150mm200mm
Thickness
51mm
Top Plate Size
114*102mm
Top Plate Thickness
6mm
Installation Aperture
11.2mm
Hole Distance
92*76mm/76*67mm
Transport Package
Carton Packing, by Sea
Trademark
CARSUN
Origin
China
HS Code
8302200000
Production Capacity
1000PCS/Day
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 35.00cm
Package Gross Weight
2.100kg
Product Description
Dongguan Carsun Caster Co.,Ltd

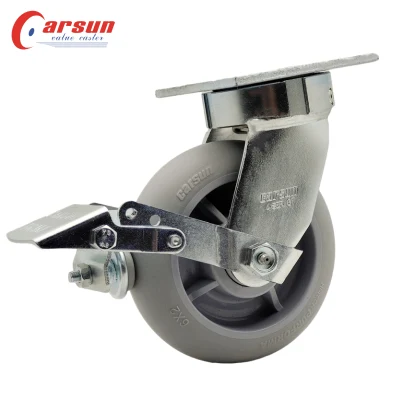

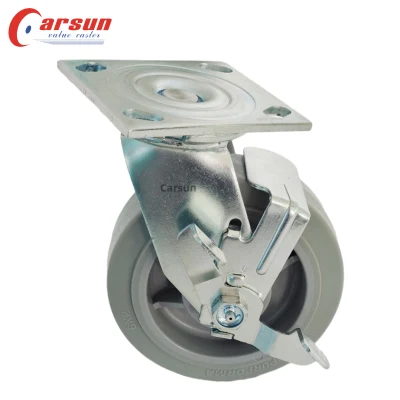

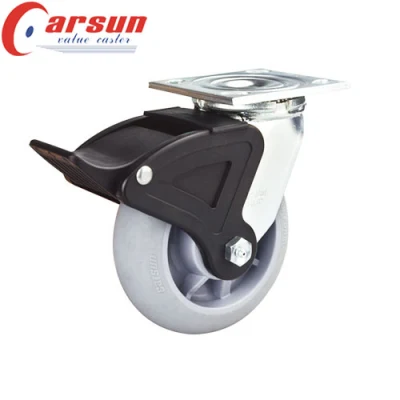

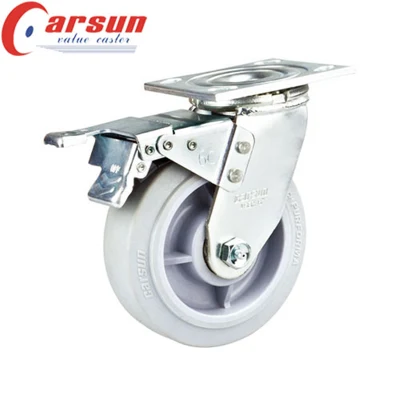

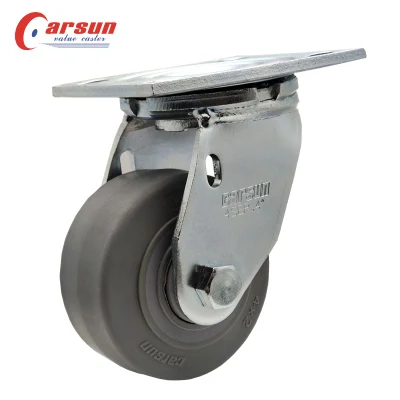

Heavy Industrial Castors 4/5/6/8 Inch Thermoplastic rubber wheels grey TPR casters
- Product performance description
-
The wheels are made of grey thermoplastic rubber (TPR), the top plate is made of 6MM thick carbon steel, and the bracket fork is made of 5MM carbon steel. The surface is galvanized, with stronger load-bearing capacity.
The double bead track adopts a carbon nitrogen co infiltration heat treatment process to enhance the hardness of the bead plate, improve its service life, and increase its flexibility in rotation.
which is applicable to our 4 series products.color can be customized as required.
It can be used as rigid casters and swivel casters.The maximum load of each caster can reach 304kg.
We are a professional manufacturer of industrial caster wheels.
We can produce different types of casters according to your requirements.
| Size | Wheel material | Bearing | Wheel Diameter& Wide | Load capacity | Top Plate size | Bolt hole spacing | Bolt hole diameter | Overall height | Product No |
| 3inch | TPR | Double bearing | 75*32mm | 100kg | 92*64mm | 78*45mm | 8.5mm | 105mm | 2-3T01S-301G |
| 3inch | TPR | Single bearing | 75*32mm | 100kg | 92*64mm | 78*45mm | 8.5mm | 105mm | 2-3T01S-301H-1 |
| 3inch | TPR | Delrin bearing | 75*32mm | 100kg | 92*64mm | 78*45mm | 8.5mm | 105mm | 2-3T01S-301C |
| 3.5inch | TPR | Double bearing | 90*32mm | 110kg | 92*64mm | 78*45mm | 8.5mm | 119mm | 2-35T01S-301G |
| 3.5inch | TPR | Single bearing | 90*32mm | 110kg | 92*64mm | 78*45mm | 8.5mm | 119mm | 2-35T01S-301H-1 |
| 3.5inch | TPR | Delrin bearing | 90*32mm | 110kg | 92*64mm | 78*45mm | 8.5mm | 119mm | 2-35T01S-301C |
| 4inch | TPR | Double bearing | 100*32mm | 125kg | 92*64mm | 78*45mm | 8.5mm | 130mm | 2-4T01S-301G |
| 4inch | TPR | Single bearing | 100*32mm | 125kg | 92*64mm | 78*45mm | 8.5mm | 130mm | 2-4T01S-301H-1 |
| 4inch | TPR | Delrin bearing | 100*32mm | 125kg | 92*64mm | 78*45mm | 8.5mm | 130mm | 2-4T01S-301C |
| 5inch | TPR | Double bearing | 125*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 157mm | 2-5T01S-301G |
| 5inch | TPR | Single bearing | 125*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 157mm | 2-5T01S-301H-1 |
| 5inch | TPR | Delrin bearing | 125*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 157mm | 2-5T01S-301C |
| 6inch | TPR | Single bearing | 150*32mm | 146kg | 92*64mm | 78*45mm | 8.5mm | 185mm | 2-6T01S-301H-1 |
| 4inch | TPR | Double bearing | 100*51mm | 160kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T50S-301G |
| 4inch | TPR | Roller bearing | 100*51mm | 160kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T50S-301E |
| 4inch | TPR | Delrin bearing | 100*51mm | 160kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T50S-301C |
| 5inch | TPR | Double bearing | 125*51mm | 180kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T50S-301G |
| 5inch | TPR | Roller bearing | 125*51mm | 180kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T50S-301E |
| 5inch | TPR | Delrin bearing | 125*51mm | 180kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T50S-301C |
| 6inch | TPR | Double bearing | 150*51mm | 270kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T50S-301G |
| 6inch | TPR | Roller bearing | 150*51mm | 270kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T50S-301E |
| 6inch | TPR | Delrin bearing | 150*51mm | 270kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T50S-301C |
| 8inch | TPR | Double bearing | 200*51mm | 304kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T50S-301G |
| 8inch | TPR | Roller bearing | 200*51mm | 304kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T50S-301E |
| 8inch | TPR | Delrin bearing | 200*51mm | 304kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T50S-301C |
We not only produce various standard casters commonly used in the industry, but also provide customized services according to customers' requirements.
We can produce castors that meet the EU ROHS environmental protec tion standards, and also produce medical castors that meet the international SGS medical testing standards. Since its inception, the company has established a perfect quality management system and successfully passed the ISO9001:2015 quality management system demonstration. In order to effectively ensure the product quality, the company has prepared various caster testing facilities to make it clear that the products must be tested in strict accordance with the quality management standards before leaving the factory, such as product life test, salt spray test, impact resistance test and so on.
1.Q: Are you manufacture or trading company?
A: We are manufacture. Our factory has been specializing in all kinds of caster wheels since 2014.
2.Q: Where is your factory? Can I visit ?
A: Our factory is located in Dongguan, Guangdong China. It's an hour's drive from Guangzhou Baiyun International Airport.You are warmly welcome to visit whenever you are available.
3.Q: What is your delivery time?
A: In general, within 20 days. It also depends on the order quantity.
4.Q: What is the term of payment?
A: Payment terms: 50% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.
5.Q: Can I get some samples? And what's the timing?
A: Yes, samples are available at any time. We charge some sample cost and will return it during the next order.
6 .Q: How can your factory control the quality?
A: Quality is at the forefront of our commitments to our customers always. We have strict quality management process from raw
material to finished product. Details please ref below:
-- Material Vendor Assessed.
-- Incoming material inspected(IQC)
-- In-line product 100% Check(QC)
-- 100% inspect before packing(QC)
-- According to standard or customer's requirement to check random after final packing to ensure the quality(QA)
7. Q: What's the MOQ?
A:Normally we take the order no matter it's big or small. If your qty is less than 5pcs per SKU, we will arrange it in our sample room specially.
8. Q: Can I make my own brand?
A: Yes, we do both OEM and ODM, so you can make your own logo on the bags.
