Basic Info.
Model NO.
SCAFA-150050R-12
Maximum Load
900 Lbs
Specification
8 Inch, SGS
Thickness
50mm
8 Inches
Rubber on Cast Iron Wheel
Anticollision
Heavy Duty Load Capacity
Long Working Life
1000 Lbs Loading Capacity
Transport Package
200PCS/Pallet
Trademark
WANDA
Origin
Jiangsu, China
HS Code
87169000
Production Capacity
120, 000/Year
Product Description
Product Features:
Instalation & Dimension Figure:

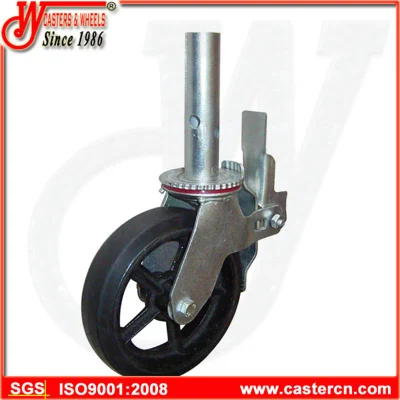

Product Picture :
| Caster Brand | WANDA |
| Product Name | American Standard 6"x2" Rounded Stem Scaffold Caster With Rubber On Cast iron Wheel |
| Range of Application | Use for Door Frame Scaffold |
| Product Code | SCAFA-150050R-12 |
| Product Category | Heavy Duty Casters |
| Loading Capacity | 250 kgs |
| Mounting Type | Insert Type |
| Overall Height | 187 mm |
| Thickness of Frame | 5 mm |
| Frame Material | Q235B |
| Stem Size | 34.5 mm(other size avaiable |
| Surface Finish | Zinc Plated |
| Wheel Dia. | 150 mm (6 inch) |
| Wheel Width | 50 mm |
| Wheel Tread Material | Rubber |
| Wheel Tread Hardness | 85A |
| Wheel Tread Colour | Black |
| Wheel Hub Material | Cast Iron |
| Bearing Type | Roller Bearing |
| Temperature Range | -10ºC~70ºC |
Instalation & Dimension Figure:
Product Picture :
