Basic Info.
Model NO.
KHXX-H3
Product Series
Heavy Duty Series
Wheel Size
4"5"6"8"
Material
Nylon Material
Application
Caster
Transport Package
16PCS/CTN for 4" 10PCS/CTN for 6" 6PCS/CTN for 8"
Specification
Fixed/Swivel/Total Brake/Side Brake
Trademark
kezhi
Origin
China
HS Code
8302200000
Production Capacity
50000/Month
Product Description

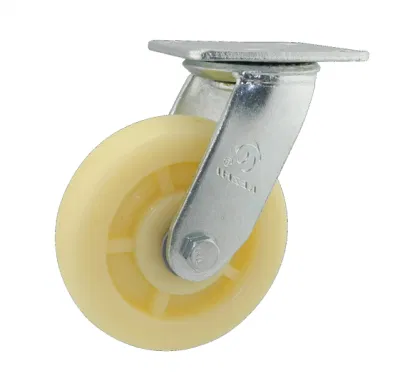

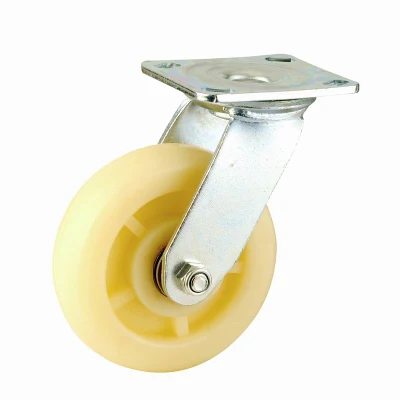

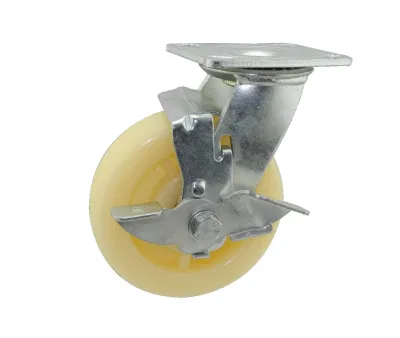

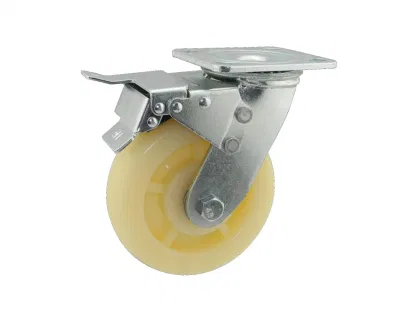

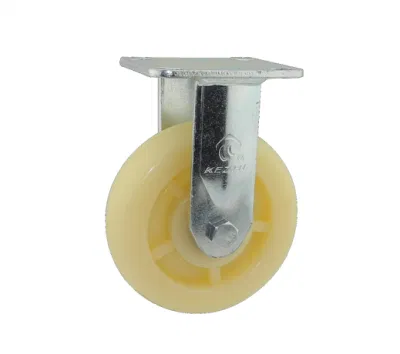

Heavy Duty Type New Double Pedal Brake Nylon Caster KHx3-H3-A
[Model Included]: KHx3-H3-A
[General Feature]: Wheel Material in Nylon
Brake Type and Zinc Plating Finish
Double ball bearing
6.0mm thickness for plate
High shock absorption
High abrasion resistance
High Stain resistance
[Others Features]:
Wheel Size 100X50mm/125X50mm150X50mm/200X50mm
Load capacity to 280kgs/350kgs/410kgs/420kgs
Load Height to 142mm/164mm/190mm/240mm
Plate Size: 102X115mm
Hole Spacing: 85X72mm
Hole Diameter: 11mm
Special Size can be made upon request.
[Model Included]: KHx3-H3-A
[General Feature]: Wheel Material in Nylon
Brake Type and Zinc Plating Finish
Double ball bearing
6.0mm thickness for plate
High shock absorption
High abrasion resistance
High Stain resistance
[Others Features]:
Wheel Size 100X50mm/125X50mm150X50mm/200X50mm
Load capacity to 280kgs/350kgs/410kgs/420kgs
Load Height to 142mm/164mm/190mm/240mm
Plate Size: 102X115mm
Hole Spacing: 85X72mm
Hole Diameter: 11mm
Special Size can be made upon request.
| Wheel Size | Wheel Width | L.Capacity | Setting Height | Plate Size | Spacing Hole |
| 100mm | 50mm | 280kgs | 142mm | 102*115mm | 85*72mm |
| 125mm | 50mm | 350kgs | 164mm | 102*115mm | 85*72mm |
| 150mm | 50mm | 410kgs | 190mm | 102*115mm | 85*72mm |
| 200mm | 50mm | 420kgs | 240mm | 102*115mm | 85*72mm |
