Basic Info.
Model NO.
SZGH-36J
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Usage
Metal Parts Machining
Function
PLC+Atc
After-Sales Service Provided
Online Support
Interface
USB Movable
Machine Type
Lathe Machine CNC
Display Screen
Color
Precision
High Precision Machine
Spindle Speed Ranges
40~4000
Product Type
Mini CNC Machine
Chuck Size
6 Inch Hydraulic Chuck
Spindle Speed
4000rpm
Transport Package
with Wooden Box Package
Specification
1750*1400*1800 mm
Trademark
SZGH
Origin
China
HS Code
8458110090
Production Capacity
500sets/ Month
Product Description

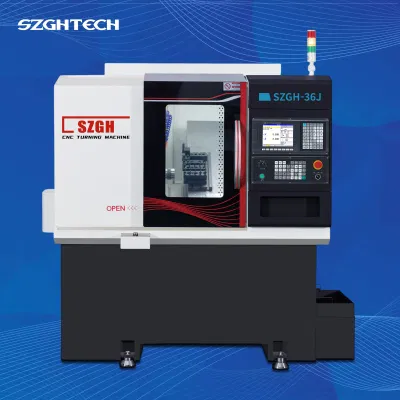

Precision Metal Turning CNC Lathe Machine SZGH-36Y Horizontal Flat Bed CNC Lathe
Product Overview
On the basis of the KX36 CNC lathe, 4 power heads on the Y-axis side are installed to realize the turning-milling compound function of 6 rows of cutters and 4 side milling, which is widely used in the processing of workpieces that require drilling, tapping, and slotting on the side. Because the one-time clamping is completed, the error of the second clamping is overcome, and at the same time, due to the increase in processing time and the combination of processing procedures, it is more suitable for one person to manage multiple machines, saving labor and improving automation and processing accuracy. It is suitable for processing bars within 35mm and pellets within 100mm.
Standard Configuration
The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
ball screw Linear Guides
Taiwan brand 25 mm ball grinding precision grade screw Taiwan brand 25mm Linear Guides precision grade
rod

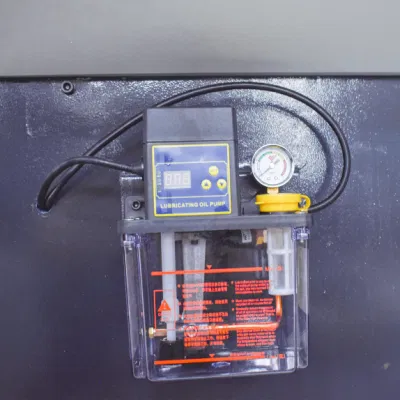

Product Features
*The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced.
Product Overview
On the basis of the KX36 CNC lathe, 4 power heads on the Y-axis side are installed to realize the turning-milling compound function of 6 rows of cutters and 4 side milling, which is widely used in the processing of workpieces that require drilling, tapping, and slotting on the side. Because the one-time clamping is completed, the error of the second clamping is overcome, and at the same time, due to the increase in processing time and the combination of processing procedures, it is more suitable for one person to manage multiple machines, saving labor and improving automation and processing accuracy. It is suitable for processing bars within 35mm and pellets within 100mm.
Standard Configuration | Technical parameter item | Unit | Standard value | Max value | |
| Processing capacity | Max. diameter of bar bore | mm | 35 | - |
| Max. particle diameter (disk type) | mm | 250 | 300 | |
Max. length of workpiece | mm | 210 | 230 | |
| Cutting amount of stainless steel on one side | mm | 2 | 3 | |
| Machining accuracy of the workpiece | mm | ±0.01 | - | |
| Surface roughness | Ra | 1.6 | - | |
| the height of center tool holder | mm | 40 | - | |
| Turning Diameter | mm | 350 | - | |
| Square Knife Specifications | mm | 16 | - | |
| Travels | X-axis effective travel | mm | 600 | - |
| Z-axis effective travel | mm | 230 | - | |
| Y-axis | Y-axis mode | - | side 4 power head | - |
| Y-axis travel | mm | 140 | - | |
| Y-axis power head clamping type | - | ER16 | - | |
| Y-axis maximum speed | rpm | 2500 | 4000 | |
| Y-axis rapid traverse speed | m/min | 15 | - | |
| Maximum drill diameter | mm | 20 | - | |
| Feed | X-axis rapid traverse | m/min | 25 | 30 |
| Z-axis rapid traverse | m/min | 25 | 30 | |
| X-axis servo-motor power | kW | 1.3 | - | |
| Z-axis servo-motor power | kW | 1.3 | - | |
| Spindle | Max.Spindle Speed | rpm | 3500 | 4000 |
| Spindle Motor Power | kW | 3 | - | |
| Spindle nose taper | - | A2-4 | - | |
| Support hydraulic chuck size | inch | 6 | 8 | |
| Dimensions | Dimensions | mm | 1750*1400*1800 | - |
| Total Weight | kg | 1800 | - | |
| Machine tool specifications and component items | Specification | Standard | Optional | |
| Part Specifications | Screw | 25mm | Taiwan ball grinding precision grade | - |
| Guide rail | 25mm | Taiwan H-class linear guide rail | - | |
| Bearing | 7015/7013 | Wuxi two-axis Harbin high-speed angular joint fusion bearing | ||
| Spindle motor | 3kW | Variable frequency drive type | 3.7kW servo spindle | |
| Feed servo | 1.3kW | SZGH Servo | - | |
| CNC Control | - | SZGH | SZGH | |
| Machine specifications | Bed Type | 30° | Slant Bed | - |
| Base form | - | Heavy-duty anti-deformation patented base | - | |
| Clamping method | - | hydraulic clamping | - | |

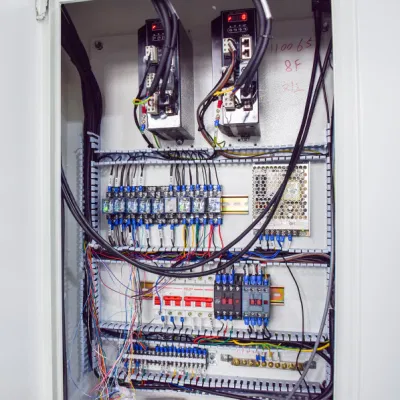

CNC CONTROLLER SYSTEM
1)2-5 Axis Fully English Type CNC lathe controller
2) 800x600 8.4 inch real color LCD displayer
3) Electric Turret & Binary code turret,Max: 99 pcs tools
4) Support ATC , Macro function and PLC function
5) Max speed is 60m/min, feeding speed is 24m/min
6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing
7) High anti-jamming switch power( 100V-240VAC 50Hz/60Hz -> 24VDC)
8)64MB Memory,56Mb user store room
9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade
10)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V
11)32 bits ARM microprocessor+FPGA Technology
12)Basic I/O: 36X36 , can be edited freely
13)cutter offset
14)Installing dimension, electric interfaces, instruction system and operating windows being compatible with those of GSK 980TDb Turning CNC System

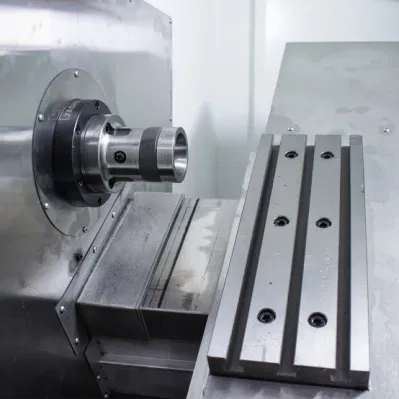

spindle Rotary cylinder Machining of long shaft
The self-made high-speed paired The standard configuration adopts a lt can realize the processing of 120mm
bearing unit spindle adopts angular hydraulic rotary cylinder to make the long workpiece with the nozzle holder.
contact high-speed bearings,and the clamping force stronger, more stable
normal speed is 3500/min, which is and have a longer
suitable for large-scale machining. The service life. It can be replaced with
according to different usage occasions pneumatic clamping according to the
of customers. If high-speed and actual situation.
high-gloss requirements are required,a
6000-rpm high-speed electric spindle
can be selected.
The self-made high-speed paired The standard configuration adopts a lt can realize the processing of 120mm
bearing unit spindle adopts angular hydraulic rotary cylinder to make the long workpiece with the nozzle holder.
contact high-speed bearings,and the clamping force stronger, more stable
normal speed is 3500/min, which is and have a longer
suitable for large-scale machining. The service life. It can be replaced with
according to different usage occasions pneumatic clamping according to the
of customers. If high-speed and actual situation.
high-gloss requirements are required,a
6000-rpm high-speed electric spindle
can be selected.

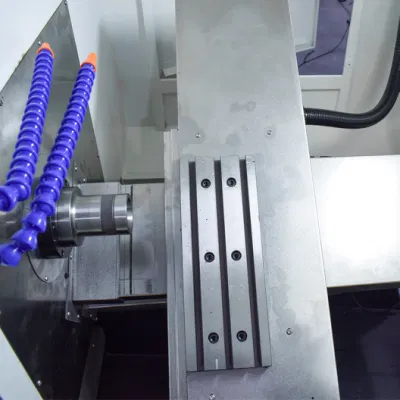

Taiwan brand 25 mm ball grinding precision grade screw Taiwan brand 25mm Linear Guides precision grade
rod
Product Features
*Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity.
* Anti-deformation patented heavy-duty base, heavy enough to support fast. Heavy enough to support bar and large parts, anti-vibration, improve precision and smoothness.*The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced.
*Bed adopt flat bed, slide board adopt 30°slant design, high rigidity, good machining flexibility.
*Super compact design, big inside space, modern appearance.
*Base adopt multi layer strengthening rib, ensure bed's strength and stability.
*Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque, high speed wide adjustment range.
*Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, high transmission rigidity,can realize μ class precise turning.
*Adopt SZGH electric control package to make electromechanical cooperation play the best efficiency.
1. Who are we?
We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independenttechnical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4.What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?
1.Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.
6.What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
7.How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
8.Does your cnc support booting logo exchange?
Yes, no problem.
Yes, no problem.
