Basic Info.
Model NO.
4-4T01S-201G
Bearing Type
Ball Bearing
Surface Treatment
Zinc Plated
Brand
Carsun
Maximum Load
450kg
Specification
4inch/5inch/6inch/8inch
Diameter
100mm/125mm/150mm200mm
Thickness
51mm
Top Plate Size
114*102mm
Top Plate Thickness
6mm
Installation Aperture
11.2mm
Hole Distance
92*76mm/76*67mm
Transport Package
Carton Packing, by Sea
Trademark
CARSUN
Origin
China
HS Code
8302200000
Production Capacity
1000PCS/Day
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 35.00cm
Package Gross Weight
2.100kg
Product Description
Dongguan Carsun Caster Co.,Ltd

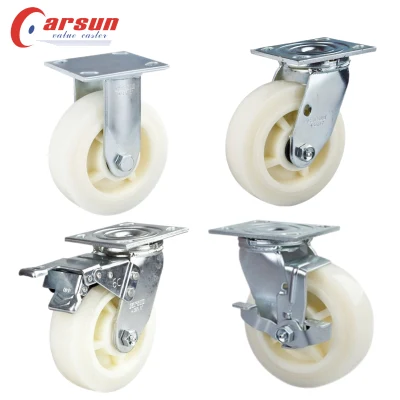

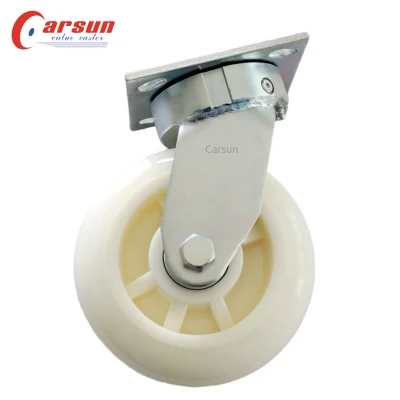

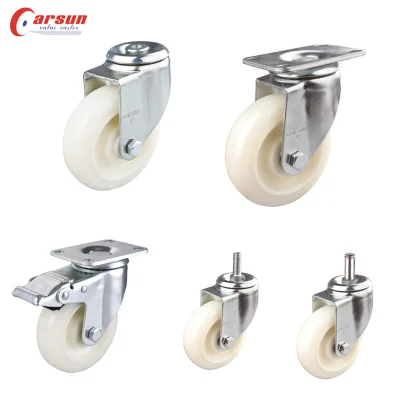

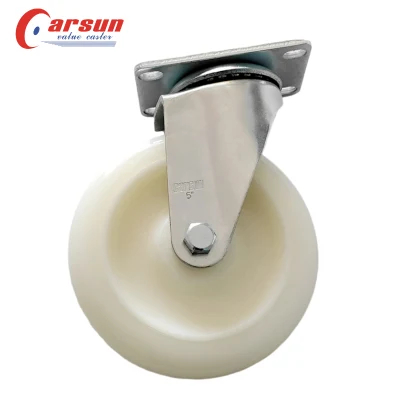

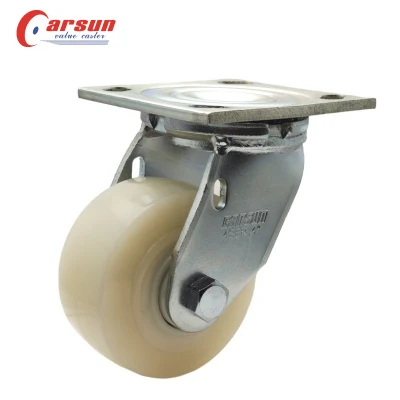

Cart casters Industrial casters 4/5/6/8 inch white nylon caster wheels
- Product performance description
-
The wheels are made of white nylon, the top plate is made of 6MM thick carbon steel, and the bracket fork is made of 5MM carbon steel. The surface is galvanized and has stronger load-bearing capacity.
The double bead track adopts a carbon nitrogen co infiltration heat treatment process to enhance the hardness of the bead plate, improve its service life, and increase its flexibility in rotation.
which is applicable to our 4 series products.
color can be customized as required.
It can be used as rigid casters and swivel casters.The maximum load of each caster can reach 450kg.
We are a professional manufacturer of industrial caster wheels.
We can produce different types of casters according to your requirements.
| Size | Wheel material | Bearing | Wheel Diameter& Wide | Load capacity | Top Plate size | Bolt hole spacing | Bolt hole diameter | Overall height | Product No |
| 3inch | Nylon | Double bearing | 75*32mm | 100kg | 92*64mm | 78*45mm | 8.5mm | 105mm | 2-3T01S-201G |
| 3inch | Nylon | Single bearing | 75*32mm | 100kg | 92*64mm | 78*45mm | 8.5mm | 105mm | 2-3T01S-201H-1 |
| 3inch | Nylon | Delrin bearing | 75*32mm | 100kg | 92*64mm | 78*45mm | 8.5mm | 105mm | 2-3T01S-201C |
| 3.5inch | Nylon | Double bearing | 90*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 119mm | 2-35T01S-201G |
| 3.5inch | Nylon | Single bearing | 90*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 119mm | 2-35T01S-201H-1 |
| 3.5inch | Nylon | Delrin bearing | 90*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 119mm | 2-35T01S-201C |
| 4inch | Nylon | Double bearing | 100*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 130mm | 2-4T01S-201G |
| 4inch | Nylon | Single bearing | 100*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 130mm | 2-4T01S-201H-1 |
| 4inch | Nylon | Delrin bearing | 100*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 130mm | 2-4T01S-201C |
| 5inch | Nylon | Double bearing | 125*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 157mm | 2-5T01S-201G |
| 5inch | Nylon | Single bearing | 125*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 157mm | 2-5T01S-201H-1 |
| 5inch | Nylon | Delrin bearing | 125*32mm | 136kg | 92*64mm | 78*45mm | 8.5mm | 157mm | 2-5T01S-201C |
| 6inch | Nylon | Double bearing | 150*32mm | 146kg | 92*64mm | 78*45mm | 8.5mm | 185mm | 2-6T01S-203G |
| 6inch | Nylon | Single bearing | 150*32mm | 146kg | 92*64mm | 78*45mm | 8.5mm | 185mm | 2-6T01S-203H-1 |
| 6inch | Nylon | Delrin bearing | 150*32mm | 146kg | 92*64mm | 78*45mm | 8.5mm | 185mm | 2-6T01S-203C |
| 4inch | Nylon | Double bearing | 100*51mm | 160kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T50S-201G |
| 4inch | Nylon | Roller bearing | 100*51mm | 160kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T50S-201E |
| 4inch | Nylon | Delrin bearing | 100*51mm | 160kg | 114*102mm | 92*76mm | 11.2mm | 143mm | 4-4T50S-201C |
| 5inch | Nylon | Double bearing | 125*51mm | 180kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T50S-201G |
| 5inch | Nylon | Roller bearing | 125*51mm | 180kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T50S-201E |
| 5inch | Nylon | Delrin bearing | 125*51mm | 180kg | 114*102mm | 92*76mm | 11.2mm | 165mm | 4-5T50S-201C |
| 6inch | Nylon | Double bearing | 150*51mm | 270kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T50S-201G |
| 6inch | Nylon | Roller bearing | 150*51mm | 270kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T50S-201E |
| 6inch | Nylon | Delrin bearing | 150*51mm | 270kg | 114*102mm | 92*76mm | 11.2mm | 191mm | 4-6T50S-201C |
| 8inch | Nylon | Double bearing | 200*51mm | 304kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T50S-201G |
| 8inch | Nylon | Roller bearing | 200*51mm | 304kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T50S-201E |
| 8inch | Nylon | Delrin bearing | 200*51mm | 304kg | 114*102mm | 92*76mm | 11.2mm | 241mm | 4-8T50S-201C |
We not only produce various standard casters commonly used in the industry, but also provide customized services according to customers' requirements.
We can produce castors that meet the EU ROHS environmental protec tion standards, and also produce medical castors that meet the international SGS medical testing standards. Since its inception, the company has established a perfect quality management system and successfully passed the ISO9001:2015 quality management system demonstration. In order to effectively ensure the product quality, the company has prepared various caster testing facilities to make it clear that the products must be tested in strict accordance with the quality management standards before leaving the factory, such as product life test, salt spray test, impact resistance test and so on.
