Basic Info.
Model NO.
Threads Studs
Application
Machinery, Chemical Industry, Environmental, Building
Finish
Hot Galvanizing
Customized
Yes
Length
Customized
Electric Coating Thickness
3-8 Micron
Blue Zinc Plated
Yes
Yellow Zinc Plated
Yes
Hot Dipped Galvanized
Yes
Transport Package
Cartons, Bulkbags with or Without Pallet
Specification
M3-M45
Trademark
N/A
Origin
China
HS Code
7318150000
Production Capacity
20000 Metric Ton
Product Description

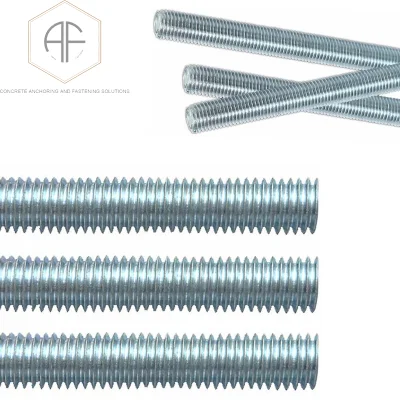

Threads Studs & Rods as a hardware solution with Threaded Hex Nuts for Beaded Garden Stake Rods as Building Material in Construction and Industrial
| Welead Industrial Limited has been dedicated to manufacturing and exporting high-quality anchor fasteners for construction since 2007. It is located in Hebei, China. Our products include various concrete anchor fasteners, such as wedge anchors, drop-in anchors, Sleeve Anchors, Heavy Duty Shield Anchors, Chemical Anchors, Hex Coupling Nuts etc. and custom fasteners per customers' design specifications using carbon steel and stainless steel. Our annual output is more than 20000T with our efficient machines. |

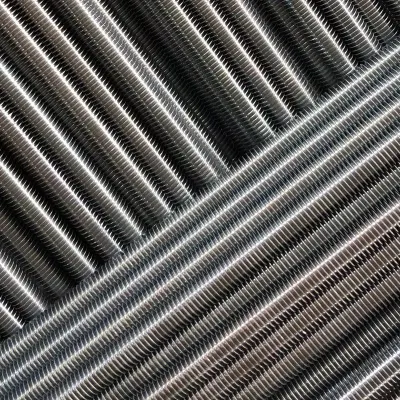

| A threaded rod is a metal rod that is threaded throughout its entire length. Threaded rods, also known as studs, are long rod fasteners. It's typically made from carbon steel, zinc coated and stainless steel. Threaded rods are threaded either along their whole length or just on set lengths at each end. The threading of it causes a tightening action from the rotational movement. Threading on a rod allows other fixings like bolts and nuts to easily screw or fasten to it. Threaded rods come in various lengths and diameters, meaning their functionality covers a huge range of applications. These rods are very useful as they can be custom cut to length to suit your application and the thread can have a right-handed or left-handed thread pattern. Threaded rods have many applications, effectively working as a pin to fasten or connect two materials together. Threaded bar uses a standard nut and washer setup and is recommended for Industrial use. Threaded bar serves as an anchoring for ceiling hangers, metal ducts, air conditioning systems and more. The flexible and versatile nature of threaded rod makes it ideal for anchoring and fastening. |
| Thread Diameter | Pitch: P mm | Thread Diameter | Pitch: P mm |
| M3 | 0.5 | M20 | 2.5 |
| M4 | 0.7 | M22 | 2.5 |
| M5 | 0.8 | M24 | 3 |
| M6 | 1 | M27 | 3 |
| M8 | 1.25 | M30 | 3.5 |
| M10 | 1.5 | M33 | 3.5 |
| M12 | 1.75 | M36 | 4 |
| M14 | 2 | M39 | 4 |
| M16 | 2 | M42 | 4.5 |
| M18 | 2.5 | M45 | 4.5 |

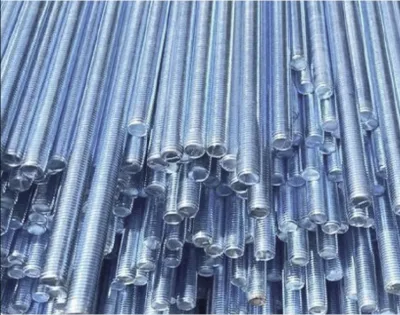

Threaded rods
• Install the first level Shearwall over the Embedment Anchor Rod.
• Drill a hole 1/4" - 1/2" larger than the diameter of the threaded rod to be installed.
The hole is to be located directly above the anchor bolt.
• Use the threaded stud layout drawing or a plumb bob to locate the hole position.
The rod may be offset a maximum of 2" per 10' floor height, if required.
• Install the first level Shearwall over the Embedment Anchor Rod.
• Drill a hole 1/4" - 1/2" larger than the diameter of the threaded rod to be installed.
The hole is to be located directly above the anchor bolt.
• Use the threaded stud layout drawing or a plumb bob to locate the hole position.
The rod may be offset a maximum of 2" per 10' floor height, if required.
| Q: Are you a factory or a trade company? A: We are a factory located in Handan, Hebei, China. |
| Q: What price term could you offer? A: We could offer FOB, CIF, EXW. |
| Q: What is your minimum order quantity? A: As usual, our MOQ is at least one pallet of wedge anchors, drop in anchors. |
| Q: Could you make yellow zinc plated or hot dip in galvanized wedge anchors? A: Yes. |
| Q: Can you offer samples? A: We could arrange free samples delivery. |
| Q: What is the lead time? A: As usual, it takes about 15-20 days per container and varies due to specific orders. |

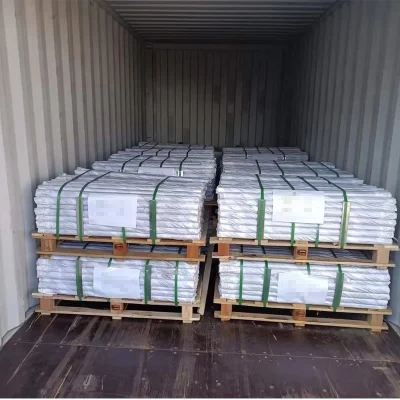

| Q: What is the package type? A: Packed in 25kg bulk bag, inner box & cartons, with or without pallet, or as per customers' requirement. |
| Ship to all over the world: Our clients are manufacturers, distributors, construction companies, etc. all around the world. Output: With our efficient machines for wedge anchors, drop in anchors, our annual output is more than 20000T. Long Term Goal: We are not just selling and shipping products, but to help our clients' business, reduce their costs, increase their marketing shares. It is believed long terms of business relationship are built on the basis of mutual benefits. |
