Basic Info.
Model NO.
EH09-12-200S-617
Maximum Load
136kgs
Specification
200X65,250X86mm, SGS
Diameter
200,250mm
Thickness
64mm
Material
Rubber
Size
200X64mm
Plating
Zinc Plating
Transport Package
6PCS/Carton
Trademark
GLOBE
Origin
Foshan, China
HS Code
87169000
Production Capacity
1000000PCS Per Month
Product Description
Specification:
Advantages on our products:
1) High quality materials purchased with strictly quality check.
2) Each product checked strictly before packing.
3) We are professional manufacturer.
Package, showroom and factory
"MADE IN CHINA" & "GLOBE" can be printed under body, on edge/carton as per client's requirement.
Company Information:
Offering over 1,000 Varieties of Casters
Established in 1988 with a registered capital of $20 million, Foshan Globe Caster is a professional manufacturer of all kinds of casters. We have developed eight series and more than 1,000 varieties through constant improvement and innovation. Our products
are widely marketed in Europe, the US, Africa, the Middle East, Australia and Asia.
Ensuring Flexibility, Convenience and Durability of Products
We adopted advanced technology, equipment and high-quality materials to ensure the flexibility, convenience and durability of our products. In different circumstances, our products have wear, collision, chemical corrosion, low/high temperature resistance, trackless, floor protection and low noise features.
Contact Us Today
Our 120,000sqm factory and 500 skilled workers are ready to complete your volume orders. Contact us today to get your order start.
| Detail Specification | Wheel sizes: 200X65mm; 250X86mm |
| Wheel material: Rubber | |
| Load capacity: 125kgs; 180kgs | |
| Zinc plated, Double ball bearing | |
| Top plate size: 114X100mm | |
| Bolt hole spacing: 84X71mm | |
| Bolt hole diameter: 11mm | |
| Caster types: swivel, fixed | |
| Payment terms | TT |
| Packing details | Package: 6pcs/CTN for 8 inch; 3pcs/CTN for 10 inch |
| Carton size: 34X34X32mm |

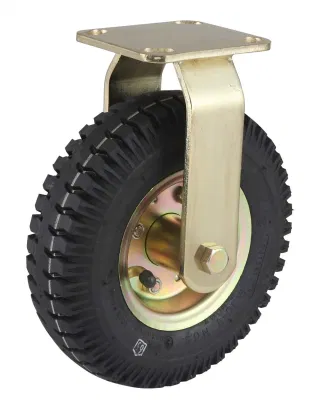

8" 10" Rigid iron core pneumatic caster(Colored plating)
EH09-12-200R-617 EH09-12-250R-617
Wheel width: 65/86mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loaing: 125kg/136kg
EH09-12-200R-617 EH09-12-250R-617
Wheel width: 65/86mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loaing: 125kg/136kg

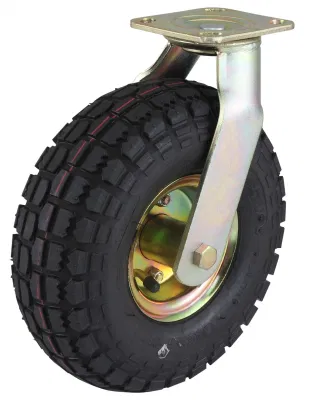

8" 10" Swivel iron core pneumatic caster(Colored plating)
EH09-12-200S-617 EH09-12-250S-617
Wheel width: 65/86mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 125kg/136kg
EH09-12-200S-617 EH09-12-250S-617
Wheel width: 65/86mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 125kg/136kg

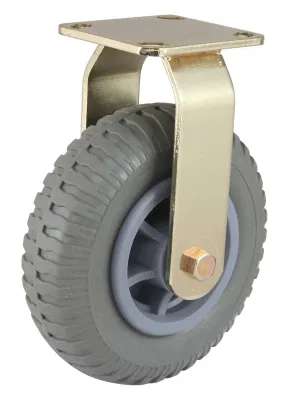

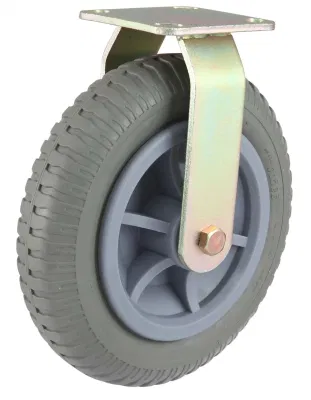

8" 10" Rigid foaming caster(Colored plating)
EH09-12-200R-618 EH09-12-250R-618
Wheel width: 65mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 150kg/180kg
EH09-12-200R-618 EH09-12-250R-618
Wheel width: 65mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 150kg/180kg
8" 10" Rigid foaming caster(Colored plating)
EH09-12-200S-618 EH09-12-250S-618
Wheel width: 65mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 150kg/180kg
EH09-12-200S-618 EH09-12-250S-618
Wheel width: 65mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 150kg/180kg
8" 10" Rigid iron core pneumatic caster(Gold plating)
EH09-12-200R-618 EH09-12-250R-618
Wheel width: 65/86mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loaing: 125kg/136kg
EH09-12-200R-618 EH09-12-250R-618
Wheel width: 65/86mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loaing: 125kg/136kg
8" 10" Swivel iron core pneumatic caster(Gold plating)
EH09-12-200S-618 EH09-12-250S-618
Wheel width: 65/86mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 125kg/136kg
EH09-12-200S-618 EH09-12-250S-618
Wheel width: 65/86mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 125kg/136kg
8" 10" Rigid foaming caster(Gold plating)
EH09-12-200R-618 EH09-12-250R-618
Wheel width: 65mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 150kg/180kg
EH09-12-200R-618 EH09-12-250R-618
Wheel width: 65mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 150kg/180kg
8" 10" Rigid foaming caster(Gold plating)
EH09-12-200S-618 EH09-12-250S-618
Wheel width: 65mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 150kg/180kg
EH09-12-200S-618 EH09-12-250S-618
Wheel width: 65mm
Ball bearing
Setting height: 250/290mm
Swivel radius: 162/187mm
Top plate size: 114x100mm
Hole Spacing: 84x71mm
Hole Diameter: 11mm
Loading: 150kg/180kg
