Basic Info.
Model NO.
P104-23D200X50S
Bearing Type
Roller Bearing
Surface Treatment
Stainless Steel
Brand
Double Rhombus
Maximum Load
100/150/200/320/350kg
Specification
3.2/4/5/6.4/8 Inch, GB; ISO 9001-2000, BSCI, SGS, REACH, ROHS
Thickness
32/32/36/45/50mm
Diameter
80/100/125/160/200mm
Style Name
Stainless Steel Castors
Application
Industrial Caster
Material
Elastic Rubber+Nylon
Wheel Diameter
80/100/125/160/200mm
Wheel Width
32/32/36/45/50mm
Housing Material
Stainless Steel Housing
Housing Thickness
2.5/2.5/2.5/3/3mm
Offset
37.5/40/47/68/68mm
Load Capacity
100/150/200/320/350kg
Over Height
106/128/153/197/240mm
Color
Blue
Packing
Carton
Transport Package
Wooden Cases; Cartons for Stainless Steel Castors
Trademark
Double Rhombus
Origin
Hubei, China
HS Code
87169000
Production Capacity
500, 000 PCS/Month for Castors
Product Description
Parameter
General features:
This caster is a new design in Stainless Steel Housing,
1. The wheel housing is made of pressed stainless steel.
2. It is made from high quality steel and it suits for many kinds of industrial equipments.
3. Diameter is from 80mm to 200mm.

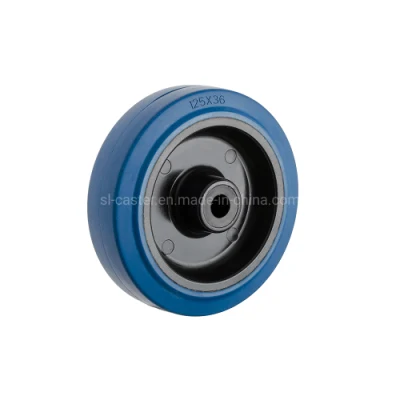

4. Blue elastic rubber wheel tread with black nylon rim with stainless steel caster housing. Plain bearing and roller bearing.

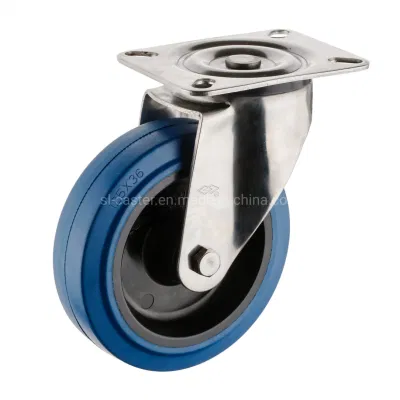

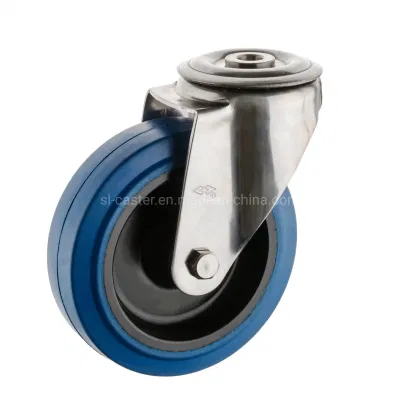

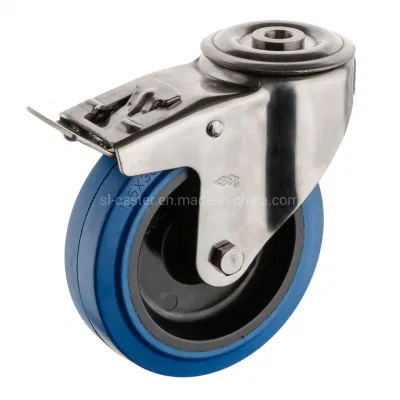

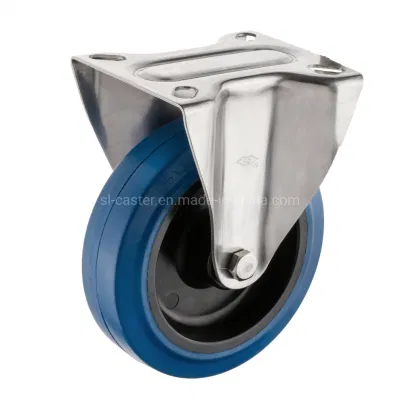

5. Five types of casters for you to select: Fixed plate caster; Swivel plate caster; Swivel plate with total brake caster; Swivel bolt hole caster; Swivel bolt hole with brake caster.
6. Certification: ISO 9001: 2008, OHASA18001: 1999, ISO 14001: 2004
Caster Specifacation:
1. Wheel dia.: 80mm/ 100mm/ 125mm/ 160mm/ 200mm
2. Wheel width: 30mm/ 30mm/ 35mm/ 45mm/ 50mm
3. Caster Load Capacity: 130kg/ 150kg/ 200kg/ 320kg / 350kg
4. Caster Over height: 105.5mm/ 127.5mm/ 152mm/197mm/ 235mm
5. Wheel Offset: 37.5mm/ 40mm/ 47mm/ 68mm/ 68mm
6. Housing thickness: 2.5mm/ 3mm
7. Stainless Steel fork
8. Roller Bearing
Double Rhombus do the best casters in China:
1. Scientific structure design;
2. Special rotation design;
3. High quality material to ensure the caster capability.
4. High quality materials purchased with strictly quality checking.
5. Producing strictly according to the ISO quality management system. Certification: ISO 9001: 2008/, OHASA18001: 1999, ISO 14001: 2004
6. Each product will be checked strictly before packing.
7. The most important thing is: We are professional manufacturer.
Payment and delivery:
1. Payment: By T/T. 40% advance payment, the balance before shipment
2. Delivery time: Three weeks after receiving the down payment
Company information
1) Our company was founded in 1978, it has gotten certificates of ISO9001 quality system, OHSAS 18001 health system and ISO 14001circumstance system already. The National Standard Bureau entrusted our company to compile the National standard GB/T14687-93 and GB/T14688-93 for industrial caster in 1993 and 2011.
2) Our company has more than ten years export experience, professional manufacturing technology, and a strict quality control system. Most of our engineers and mechanics have more than 10 years experiences on manufacturing caster. Our factory has modern manufacturing processes, equipment and mature production lines for mould making, curved cutting, punching, welding, surface plating, machine assembling and capability tests for casters, airport trolley, airport counter, airport chair, queue stand, foldable hand truck.
3) We have our own development and design teams. If there is any product you are interested in, please send us an inquiry, if you couldn't find what you want, please also let us know, we could make it customized for you.
Sample service
Sample Available
Sample fee Paid by customer, but can be refund when mass production
Delivery fee Send by express or by air, paid by customer, but can be refund after mass production
Service
Quick response: Our customers will get our reply with 24 hours, and get our quote within 24 hours during working days. You will get our best service
FAQ: Information we need to know
Model No. Of products
Quantity
***PLS contact with me directly. If there are' t products which you are looking for, we will design for you specially.
| Model No. | P104-23D200X50S | Fixing hole size | 11mm |
| Wheel material | Elastic rubber+nylon | Bolt hole spacing | 105X80mm |
| Wheel diameter | 200mm | Hole spacing | 135X105X3mm |
| Wheel width | 50mm | Brake | Yes |
| Overall height | 240mm | Housing material | Stainless steel housing |
| Offset | 68mm | Housing thickness | 3mm |
| Load capacity | 350kg | Application | Industrial equipment |
General features:
This caster is a new design in Stainless Steel Housing,
1. The wheel housing is made of pressed stainless steel.
2. It is made from high quality steel and it suits for many kinds of industrial equipments.
3. Diameter is from 80mm to 200mm.
4. Blue elastic rubber wheel tread with black nylon rim with stainless steel caster housing. Plain bearing and roller bearing.
5. Five types of casters for you to select: Fixed plate caster; Swivel plate caster; Swivel plate with total brake caster; Swivel bolt hole caster; Swivel bolt hole with brake caster.
6. Certification: ISO 9001: 2008, OHASA18001: 1999, ISO 14001: 2004
Caster Specifacation:
1. Wheel dia.: 80mm/ 100mm/ 125mm/ 160mm/ 200mm
2. Wheel width: 30mm/ 30mm/ 35mm/ 45mm/ 50mm
3. Caster Load Capacity: 130kg/ 150kg/ 200kg/ 320kg / 350kg
4. Caster Over height: 105.5mm/ 127.5mm/ 152mm/197mm/ 235mm
5. Wheel Offset: 37.5mm/ 40mm/ 47mm/ 68mm/ 68mm
6. Housing thickness: 2.5mm/ 3mm
7. Stainless Steel fork
8. Roller Bearing
Double Rhombus do the best casters in China:
1. Scientific structure design;
2. Special rotation design;
3. High quality material to ensure the caster capability.
4. High quality materials purchased with strictly quality checking.
5. Producing strictly according to the ISO quality management system. Certification: ISO 9001: 2008/, OHASA18001: 1999, ISO 14001: 2004
6. Each product will be checked strictly before packing.
7. The most important thing is: We are professional manufacturer.
Payment and delivery:
1. Payment: By T/T. 40% advance payment, the balance before shipment
2. Delivery time: Three weeks after receiving the down payment
Company information
1) Our company was founded in 1978, it has gotten certificates of ISO9001 quality system, OHSAS 18001 health system and ISO 14001circumstance system already. The National Standard Bureau entrusted our company to compile the National standard GB/T14687-93 and GB/T14688-93 for industrial caster in 1993 and 2011.
2) Our company has more than ten years export experience, professional manufacturing technology, and a strict quality control system. Most of our engineers and mechanics have more than 10 years experiences on manufacturing caster. Our factory has modern manufacturing processes, equipment and mature production lines for mould making, curved cutting, punching, welding, surface plating, machine assembling and capability tests for casters, airport trolley, airport counter, airport chair, queue stand, foldable hand truck.
3) We have our own development and design teams. If there is any product you are interested in, please send us an inquiry, if you couldn't find what you want, please also let us know, we could make it customized for you.
Sample service
Sample Available
Sample fee Paid by customer, but can be refund when mass production
Delivery fee Send by express or by air, paid by customer, but can be refund after mass production
Service
Quick response: Our customers will get our reply with 24 hours, and get our quote within 24 hours during working days. You will get our best service
FAQ: Information we need to know
Model No. Of products
Quantity
***PLS contact with me directly. If there are' t products which you are looking for, we will design for you specially.
| Dia. | Width | Load capacity | Over height | Offset | Hole size | Top-plate size | Bolt hole spacing | Housing thickness | Code |
| 80mm | 32mm | 100kg | 106mm | 37.5mm | 9mm | 105x82.5x3 | 80x60 | 2.5mm | P104-23DA080x32S |
| 100mm | 32mm | 150kg | 128mm | 40mm | 9mm | 105x82.5x3 | 80x60 | 2.5mm | P104-23DA100x32S |
| 125mm | 36mm | 200kg | 153mm | 47mm | 9mm | 105x82.5x3 | 80x60 | 2.5mm | P104-23DA125x36S |
| 160mm | 45mm | 320kg | 197mm | 68mm | 11mm | 135x105x3 | 105x80 | 3mm | P104-23D160x45S |
| 200mm | 50mm | 350kg | 240mm | 68mm | 11mm | 135x105x3 | 105x80 | 3mm | P104-23D200x50S |
