Basic Info.
Model NO.
I001CXXXPU
Maximum Load
50kg
Specification
1/1.2/1.5/2/2.5/3inch
Diameter
25/30/40/50/65/75mm
Thickness
13/13/16.3/20.3/25/25mm
Color
Red
Sample
Available
Customization
Available
Application
Furniture/Industry
Service
Amazon Package
Trial Order
Available
Optional Wheel
PU
Customized Support
OEM, ODM, Obm
Certification
CE, ISO, RoHS
Video
Available
Transport Package
Carton
Trademark
WBD
Origin
Guangdong
HS Code
8716900000
Production Capacity
36500000PCS/Year
Product Description
WBD Caster Manufacturer 20+ years:

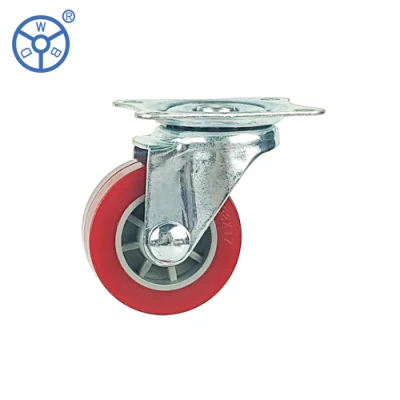

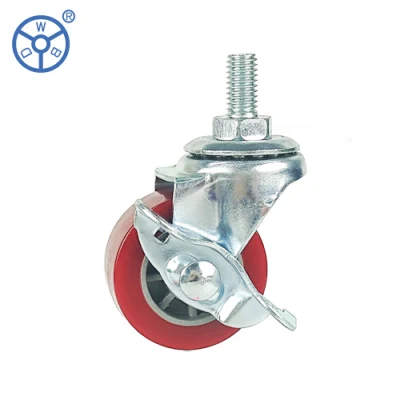

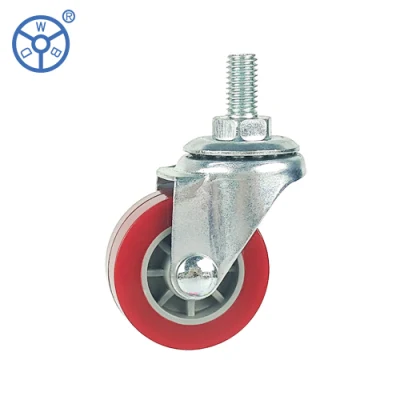

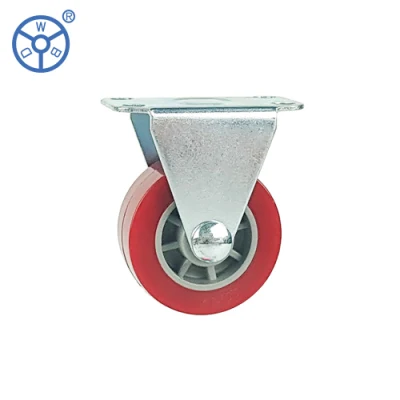

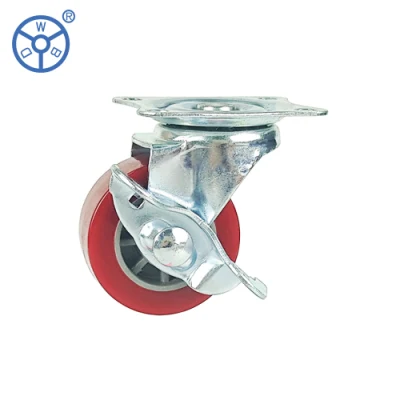

WBD 1 2 3 inch Fixed Rigid Light Duty Caster PU Wheels for Trolley
| Size | Wheel diameter | Load capacity | Top-Plate size | Bolt hole spacing | Bolt hole diameter | Overall height |
| 1inch | 25*13mm | 10 | 39*33mm | 30*24mm | 4mm | 38mm |
| 1.2inch | 30*13mm | 15 | 39*33mm | 30*24mm | 5mm | 40mm |
| 1.5inch | 40*16.3mm | 20 | 46*38mm | 36*28mm | 6mm | 50.5mm |
| 2inch | 50*20.3mm | 30 | 58*46mm | 46*35mm | 6mm | 65mm |
| 2.5inch | 65*25mm | 40 | 70*58mm | 53.5*40mm | 8mm | 84mm |
| 3inch | 75*25mm | 50 | 70*58mm | 53.5*40mm | 8mm | 93mm |
Characteristics of different material casters
1. PU casters: Whether the casters work indoors or outdoors, they can meet your requirements.
2. TRP casters: They can be used in the situations that require less noise and work quietly, like working in hotels, on medical equipment, on floors, on wooden floors, on tile floors ....
3. Nylon casters and iron casters: The casters are suitable for the places where the ground is uneven or where there are iron scraps on the ground.
4. Rubber casters: The casters are inappropriate under the condition of acid, grease and chemicals.
5. Pneumatic casters: The casters are suitable for light load and the uneven roads .
2. TRP casters: They can be used in the situations that require less noise and work quietly, like working in hotels, on medical equipment, on floors, on wooden floors, on tile floors ....
3. Nylon casters and iron casters: The casters are suitable for the places where the ground is uneven or where there are iron scraps on the ground.
4. Rubber casters: The casters are inappropriate under the condition of acid, grease and chemicals.
5. Pneumatic casters: The casters are suitable for light load and the uneven roads .
In order to meet the market demands, we always keep paying attention to improving and developing our products and ourselves. Currently we offer more than 2000 different kinds of high quality casters combinations for almost every applications such as: industrial machine, medical facility, furniture, trolley, shopping cart, hand pallet, scaffolding, shelf and so on.
