Product Description

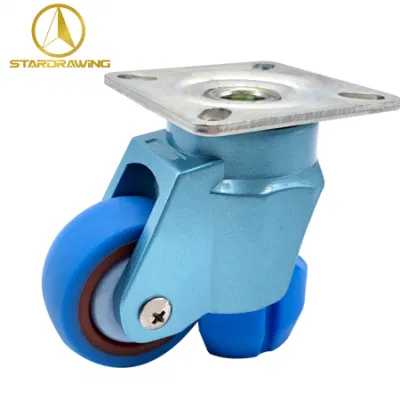

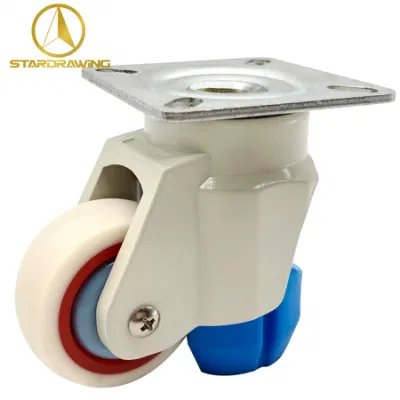

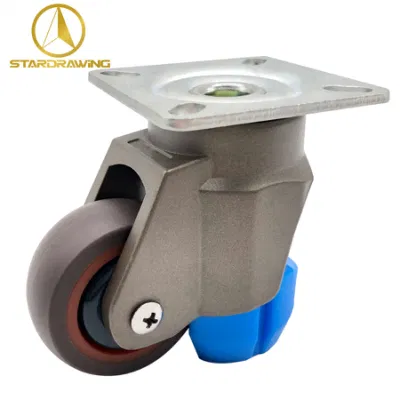

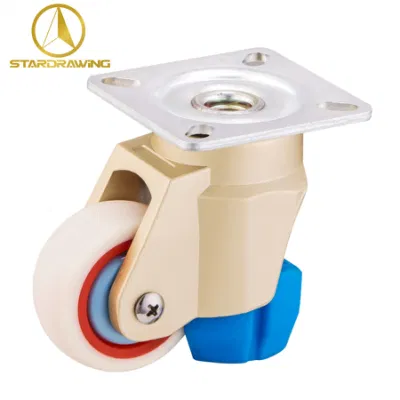

STARDRAWING Small Size Leveling Castors and Leveler 50 to 110 kg Load
STARDRAWING Small Size Leveling Castors and Leveler 50 to 110 kg Load
Our leveling casters offer a simple, elegant and advanced solution to how should I make something completely stationary and still have the ability to move it when I would like to. After installation of the appropriate number of leveling casters, with either standard top plates or threaded stems, any piece of equipment or product can easily be moved into position. Once in the desired positioned, the anti-vibration foot pad is lowered until it is pressed against the floor to relieve the wheel of the objects weight. This makes the equipment or product completely stationary, eliminating any vibration or movement associated with a traditional braking system.
Furthermore, the leveling pad allows for minor adjustments in leveling requirements depending on floor structure or individual needs. When your equipment or product needs to be moved out of the way, simply raise the anti-vibration foot pad and push it easily to a new location.
Cast aluminum body with a powder coat finish in ivory. Custom colors are available for the complete caster.
2)Have Nylon/PP/TPR wheel material options
3)Square or Triangle top plate/Threaded stem/Hollow kingping mounting method options
4)Manual thumb wheel/Open-ended wrench nut/Fast operation leveler as height adjust options
5)Die-Cast Aluminum/Steel as body frame material options
6)Color customizing available
7)With brake lockable design
| Tread Material | Wheel Diameter (MM) | Bolt Hole Pattern (MM) | Top Plate Size (MM) | Threaded Stem Size (MM) | Mounting Height (MM) | Load capacity (KG) |
| PA | 50 | 50*50 | 63*63 | M8*25 | 78+5 | 110 |
| PP | 80 | |||||
| TPR | 50 |
Available with either a stud mount or a plate mount. Casters are available for even heavier applications as a special order. Please contact us for price and delivery.
Dear : Can I get free caster wheel samples from Stardrawing ?
STAR : We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee for such good products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen, international express type(2~3days) or economic type (4~5days).
Dear : What is your payment terms of caster ?
STAR : It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for this regular payment manner.
Dear : What about your lead time ?
STAR : Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.
STAR : Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton
