Basic Info.
Model NO.
I005AXXXMPAP
Maximum Load
1ton - 10 Ton
Specification
4"/5"6"/8""Inch
Diameter
100/125/150/200mm
Thickness
25-32mm
Color
Brown/Black/Gray/Customized
Sample
Available
Customization
Available
Application
Furniture/Industry
Service
Amazon Package
Transport Package
Carton
Trademark
WBD
Origin
Guangdong
HS Code
8716900000
Production Capacity
36500000PCS/Year
Product Description
WBD Caster Manufacturer 20+ years:

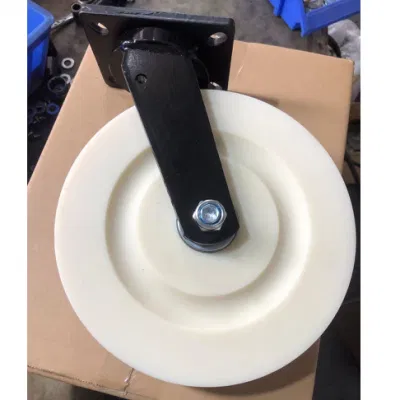

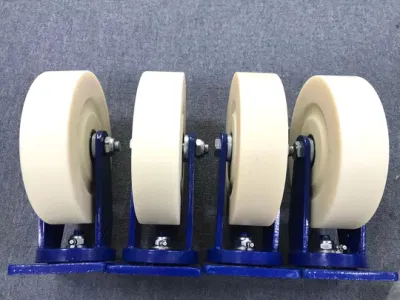

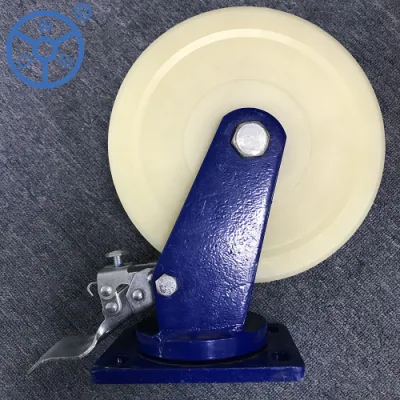

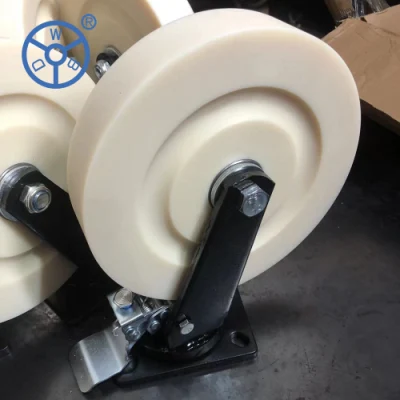

MC PA Load 5 ton Super heavy duty nylon caster wheels
| Size | Wheel diameter | Load capacity | Top-Plate size | Bolt hole spacing | Bolt hole diameter | Overall height |
| 4inch | 100*75mm | 2000kg | 200x153x14mm | 160x90mm | 13 | 165mm |
| 5inch | 125*75mm | 2000kg | 200x153x14mm | 160x90mm | 13 | 185mm |
| 6inch | 150*75mm | 2000kg | 200x153x14mm | 160x90mm | 13 | 215mm |
| 8inch | 200*75mm | 2500kg | 200x153x14mm | 160x90mm | 13 | 275mm |
| 10inch | 250*75mm | 2500kg | 200x153x14mm | 160x90mm | 13 | 320mm |
| 12inch | 300*75mm | 3000kg | 200x153x14mm | 160x90mm | 13 | 300mm |
Characteristics of different material casters
1. PU casters: Whether the casters work indoors or outdoors, they can meet your requirements.
2. TRP casters: They can be used in the situations that require less noise and work quietly, like working in hotels, on medical equipment, on floors, on wooden floors, on tile floors ....
3. Nylon casters and iron casters: The casters are suitable for the places where the ground is uneven or where there are iron scraps on the ground.
4. Rubber casters: The casters are inappropriate under the condition of acid, grease and chemicals.
5. Pneumatic casters: The casters are suitable for light load and the uneven roads .
2. TRP casters: They can be used in the situations that require less noise and work quietly, like working in hotels, on medical equipment, on floors, on wooden floors, on tile floors ....
3. Nylon casters and iron casters: The casters are suitable for the places where the ground is uneven or where there are iron scraps on the ground.
4. Rubber casters: The casters are inappropriate under the condition of acid, grease and chemicals.
5. Pneumatic casters: The casters are suitable for light load and the uneven roads .
In order to meet the market demands, we always keep paying attention to improving and developing our products and ourselves. Currently we offer more than 2000 different kinds of high quality casters combinations for almost every applications such as: industrial machine, medical facility, furniture, trolley, shopping cart, hand pallet, scaffolding, shelf and so on.
