Basic Info.
Model NO.
81PPL80TPR
Maximum Load
400kg
Specification
8 Inch, 200*50mm
Thickness
50mm
Transport Package
Wooden Case or Carton
Trademark
TENG
Origin
China
HS Code
87169000
Production Capacity
500000PCS/Month
Product Description
Product Description:
Specification:
Top plate size: 98 x 114mm
Bolt hole spacing: 71 x 85mm
Bolt Hole Diameter: 11mm

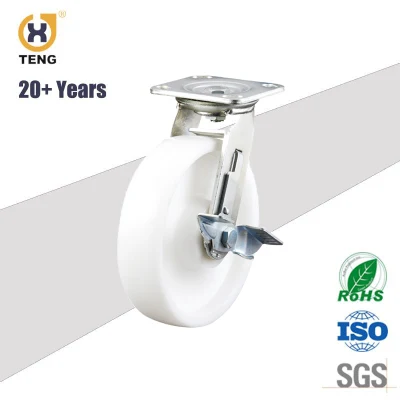

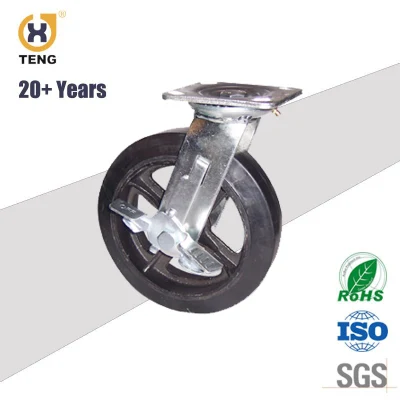

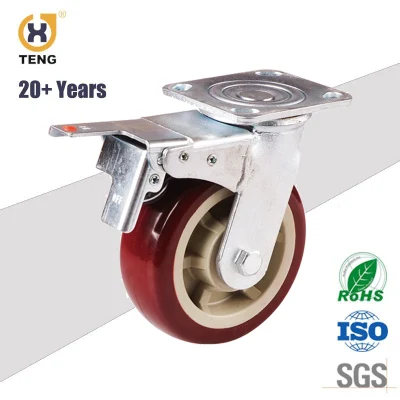

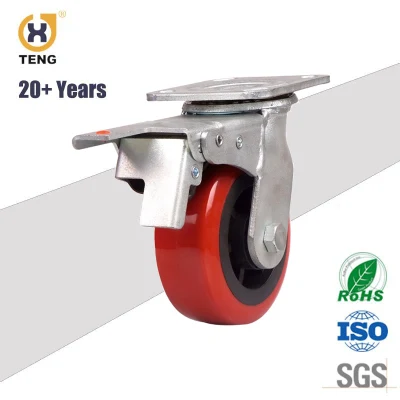

Wheel Options: PU, TPR, NYLON, PP, Cast Iron, PU on Iron, Rubber on Cast Iron wheel
Wheel Bearing Option: Roller Bearing, Double Ball Bearing
Wheel Type: Swivel,Rigid,Side Brake,Total Brake
| Size | Wheel diameter (mm) | Width (mm) | Offest (mm) | Load height (mm) | Loading capacity (kg) |
| 4" | 100 | 50 | 35 | 144 | 250 |
| 5" | 125 | 50 | 35 | 170 | 300 |
| 6" | 150 | 50 | 45 | 195 | 350 |
| 8" | 200 | 50 | 53 | 245 | 400 |
Wheel Options:
Company Overview:
Jiaxing Xingteng Caster Co., Ltd. Specializes in manufacturing exclusive varieties of casters,
Single-wheels, supermarket equipments, storage facilities, mdical equipments in China since 1997.
Packing:
Loading:
Why us:
1. Professional manufacturer since 1997.
2. Free sample are available.
3. Short lead time.
4. R&D team deal with new products design and patent
5. Certificate of ISO9001& 14001, BV, SGS, RoHS2.
6. Strict quality control system with our own advanced test machine.
7. Professional after sales service team.
8. Under normal use condition,
Warranty period of contractual goods is 1 year from the date of delivery.
9. OEM & ODM acceptable.
10. Loge on products is acceptable.
11. Package can be customized.
12. Quick and effective response with 24 hours.
13. Payment terms: LC, TT, Trade Assurance, paypal, west union, moneygram, cash.
Our Partner:
If you have any request about caster, pls feel free to contact us at anytime!
We will do our best to help you to grow your business!
