Basic Info.
Model NO.
VG82S
Maximum Load
600kg
Specification
4inch/5inch/6inch/8inch, 6"*2", 8" * 2"
Diameter
4inch/5inch/6inch/8inch
Thickness
2in/50mm
Product Name
4" 6" 8"Heavy Duty V-Groove Cast Iron Caster
Wheel Diameter
6inch
Wheel Width
2in
Mounting Sytle
Top Plate
Top Plate Dimensions
100*114mm/114*159mm
Style Namer
Small Caster
Package
Iron Crate
Thickness of Bracket
5.5mm Steel Plate
Application
Manual Push/Pull
Usage
Cargo Container, Material Handling Cart
Transport Package
Polywooden Case, Iron Case
Trademark
Super Star
Origin
Xiangtan Hunan, China
HS Code
871690
Production Capacity
50000 PCS/Month
Product Description
Factory 4" 6" 8"Heavy Duty V-Groove Cast Iron Caster
U Shape V-grooved Heavy duty Caster specification:
1.Wheel material: V-Groove cast iron wheel
2. Wheel size: 4" ×2",5" ×2",6" ×2",8" ×2",
3.Roller bearing for the wheel.
4.Use 5.6mm steel plate for forks. Finish-bright Zinc plating
5. Load capacity: 500-1000kg
6. Finish-Bright Zinc Plating
7. Top Plate and Yoke Base-It use 5.5mm steel Plate
8. Swivel-Full Double Ball Bearing
9. Axle-1/2" Diameter Bolt
10.Application: Cargo Contianers, Material Handling Cart
The heavy duty V-Groove caster parts----swivel forks and fixed forks :
1. 5.5mm steel plate
2. Top plate dimensions: 114mm*159mm

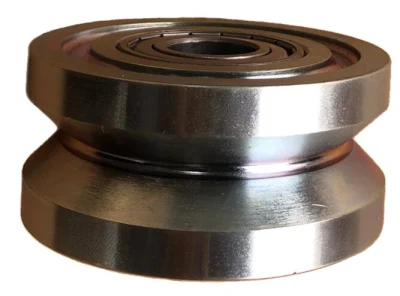

The heavy duty V-Groove caster parts--- V-grooved steel wheel
Package:
300pcs/iron Crate
Iron crate dimensions: 970*870*880mm(outspace )
24pcs crates/20' container
Delivery time:
30 days after receiving the deposit.
Our Services
It's honor to do business relatiionship with you!
Since 1991,we build our factory,and have richful experence about export our goods.
We will do our best to do:
1.quote the reasonable price!
2.offer our best quality products!
3.offer our best services!
For more goods information,Please check our website.
Thank you and best regards,
Xiangtan Superstar Casters Co., Ltd,
U Shape V-grooved Heavy duty Caster specification:
1.Wheel material: V-Groove cast iron wheel
2. Wheel size: 4" ×2",5" ×2",6" ×2",8" ×2",
3.Roller bearing for the wheel.
4.Use 5.6mm steel plate for forks. Finish-bright Zinc plating
5. Load capacity: 500-1000kg
6. Finish-Bright Zinc Plating
7. Top Plate and Yoke Base-It use 5.5mm steel Plate
8. Swivel-Full Double Ball Bearing
9. Axle-1/2" Diameter Bolt
10.Application: Cargo Contianers, Material Handling Cart
| Product Name | Factory 4" 6" 8"Heavy Duty V-Groove Cast Iron Caster |
| Wheel Material | Cast iron wheel/Semi-steel wheel |
| Wheel Width | 50mm |
| Load Capacity | 500kg-800kg |
| Hub Length | 2-3/16in |
| Plain Bore Size | 1-3/16in |
| Roller bearing Bore Size | 3/4in |
| Caster Number | VGSS62S and SS62R |
The heavy duty V-Groove caster parts----swivel forks and fixed forks :
1. 5.5mm steel plate
2. Top plate dimensions: 114mm*159mm
The heavy duty V-Groove caster parts--- V-grooved steel wheel
| wheel diameter | wheel width | wheel material | load capacity | bearing type | overall height | swivel lead | swivel caster | rigid caster |
| 4in | 2in | Mold on rubber | 350lbs | roller bearing | 5-5/8in | 1-1/6in | HVG42S | HVG42R |
| 5in | 2in | Mold on rubber | 400lbs | roller bearing | 6-1/2in | 1-1/3in | HVG52S | HVG52R |
| 6in | 2in | Mold on rubber | 450lbs | roller bearing | 7-1/2in | 1-5/9in | HVG62S | HVG62R |
| 8in | 2in | Mold on rubber | 550lbs | roller bearing | 9-1/2in | 1-19/20in | HVG82S | HVG82R |
Package:
300pcs/iron Crate
Iron crate dimensions: 970*870*880mm(outspace )
24pcs crates/20' container
Delivery time:
30 days after receiving the deposit.
