Basic Info.
Model NO.
I007
Bearing Type
Ball Bearing
Surface Treatment
Zinc Plated
Brand
Wbd
Maximum Load
200kg
Specification
80*30/100*30/125*30/125*40/160*45/mm200*50, 80*30/100*30/125*30/125*40/160*45/mm200*50
Diameter
80/100/125/160/200mm
Thickness
30/40/45/50mm
Certification
RoHS CE So9001-2015
Application
Machinery
Usage
Hand Cart ; Garden Cart etc
Package
Export Carton Packing
Service
Amazon Package
Customized
Color; Logo; Brake Black Painting
Sample
Available
Video
Available
Trial Order
Available
Optional Wheel
Rubber
Single Wheel
Available
Transport Package
Carton
Trademark
WBD
Origin
Guangdong
HS Code
8716900000
Production Capacity
36500000PCS/Year
Packaging & Delivery
Package Size
15.00cm * 15.00cm * 15.00cm
Package Gross Weight
5.000kg
Product Description

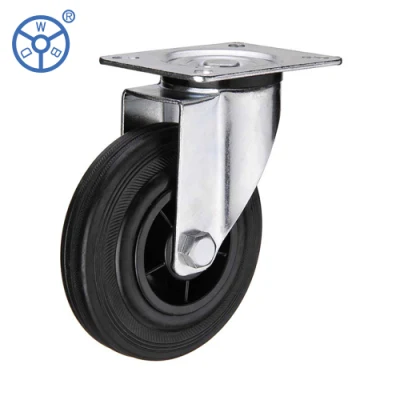

![European Type Medium Duty Caster Double Ballrace Swivel Head Rubber Castor Swivel Brake High Load Capacity](http://img6.grofrom.com/www.ruicicastersupply.com/226f3j00CSdDzKHLnfRB/European-Type-Medium-Duty-Caster-Double-Ballrace-Swivel-Head-Rubber-Castor-Swivel-Brake-High-Load-Capacity.webp)
WBD Caster Manufacturer 20+ years:
European Type Medium Duty Caster double ballrace swivel head Rubber castor swivel brake high load capacity
Size | Wheel diameter | Load capacity | Top-Plate size | Bolt hole spacing | Bolt hole diameter | Overall height |
80mm | 80x27 mm | 60kg | 105x85mm | 80x60mm | 14*9mm | 108mm |
100mm | 100x30mm | 80kg | 105x85mm | 80x60mm | 14*9mm | 128mm |
125mm | 125x38mm | 100kg | 105x85mm | 80x60mm | 14*9mm | 155mm |
125mm | 125x38mm | 100kg | 135x110mm | 105x80mm | 16*11mm | 156mm |
160mm | 160x50mm | 150kg | 135x110mm | 105x80mm | 16*11mm | 195mm |
200mm | 200x50mm | 200kg | 135x110mm | 105x80mm | 16*11mm | 240mm |
Characteristics of different material casters
1. PU casters: Whether the casters work indoors or outdoors, they can meet your requirements.
2. TRP casters: They can be used in the situations that require less noise and work quietly, like working in hotels, on medical equipment, on floors, on wooden floors, on tile floors ....
3. Nylon casters and iron casters: The casters are suitable for the places where the ground is uneven or where there are iron scraps on the ground.
4. Rubber casters: The casters are inappropriate under the condition of acid, grease and chemicals.
5. Pneumatic casters: The casters are suitable for light load and the uneven roads .
2. TRP casters: They can be used in the situations that require less noise and work quietly, like working in hotels, on medical equipment, on floors, on wooden floors, on tile floors ....
3. Nylon casters and iron casters: The casters are suitable for the places where the ground is uneven or where there are iron scraps on the ground.
4. Rubber casters: The casters are inappropriate under the condition of acid, grease and chemicals.
5. Pneumatic casters: The casters are suitable for light load and the uneven roads .

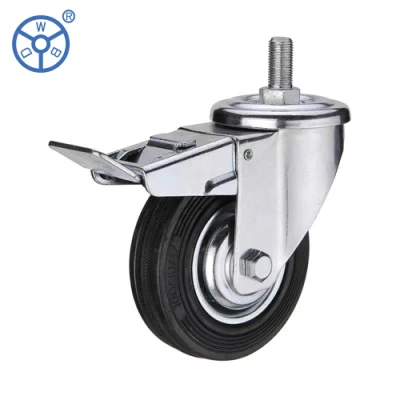

![European Type Medium Duty Caster Double Ballrace Swivel Head Rubber Castor Swivel Brake High Load Capacity](http://img6.grofrom.com/www.ruicicastersupply.com/226f3j00SZdIpbPcARGB/European-Type-Medium-Duty-Caster-Double-Ballrace-Swivel-Head-Rubber-Castor-Swivel-Brake-High-Load-Capacity.webp)

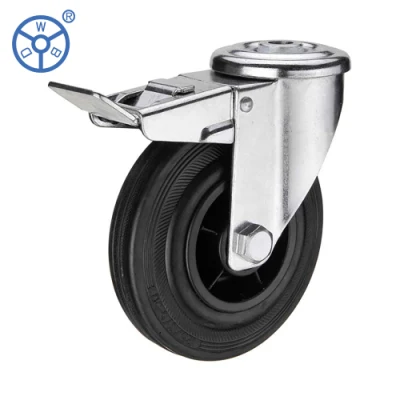

![European Type Medium Duty Caster Double Ballrace Swivel Head Rubber Castor Swivel Brake High Load Capacity](http://img6.grofrom.com/www.ruicicastersupply.com/226f3j00KjwDzsHIAURe/European-Type-Medium-Duty-Caster-Double-Ballrace-Swivel-Head-Rubber-Castor-Swivel-Brake-High-Load-Capacity.webp)

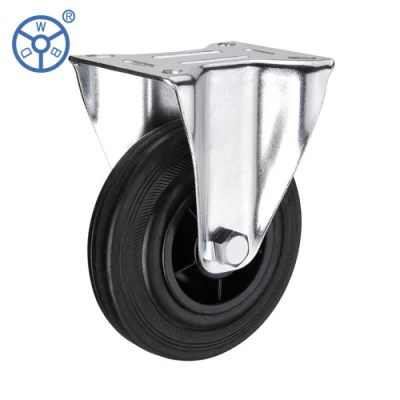

![European Type Medium Duty Caster Double Ballrace Swivel Head Rubber Castor Swivel Brake High Load Capacity](http://img6.grofrom.com/www.ruicicastersupply.com/226f3j00KSADzwHMlGRC/European-Type-Medium-Duty-Caster-Double-Ballrace-Swivel-Head-Rubber-Castor-Swivel-Brake-High-Load-Capacity.webp)

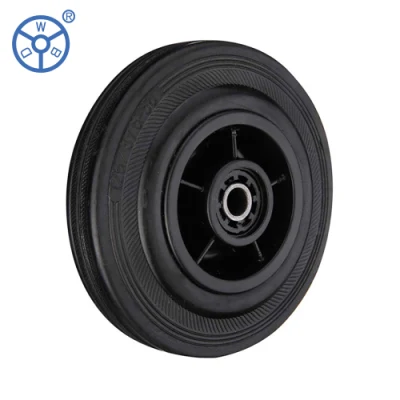

![European Type Medium Duty Caster Double Ballrace Swivel Head Rubber Castor Swivel Brake High Load Capacity](http://img6.grofrom.com/www.ruicicastersupply.com/226f3j00NZJDuUPdEfRv/European-Type-Medium-Duty-Caster-Double-Ballrace-Swivel-Head-Rubber-Castor-Swivel-Brake-High-Load-Capacity.webp)
![European Type Medium Duty Caster Double Ballrace Swivel Head Rubber Castor Swivel Brake High Load Capacity](http://img6.grofrom.com/www.ruicicastersupply.com/226f3j00nsJDpLIgbYfe/European-Type-Medium-Duty-Caster-Double-Ballrace-Swivel-Head-Rubber-Castor-Swivel-Brake-High-Load-Capacity.webp)
