Basic Info.
Model NO.
RGF32/32/10
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Surface Type
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary
Packaging
Barrel
Packaging Material
Plastic
Machine Material
Stainless Stain
Certification
ISO CE
Place of Origin
Jiangsu
Delivery Detail
30 Days After Getting Orders
Transport Package
Wood Case
Specification
ISO CE
Trademark
keyuan filling machine
Origin
Zhangjiagang Jiangsu
HS Code
8422301090
Production Capacity
14000bph
Packaging & Delivery
Package Size
4500.00cm * 1500.00cm * 2200.00cm
Package Gross Weight
2500.000kg
Product Description

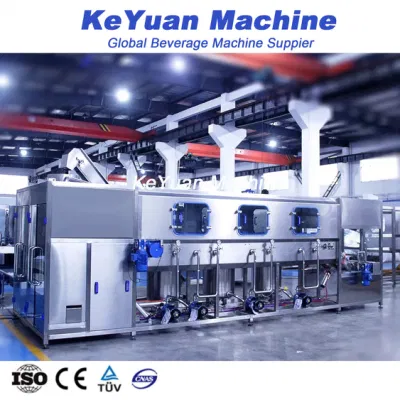

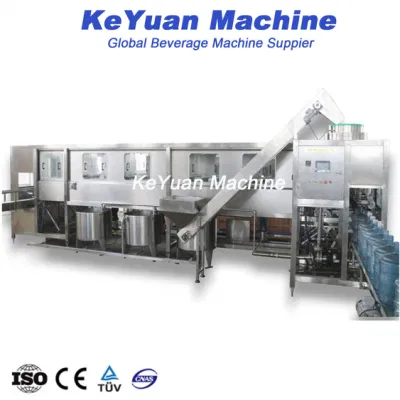

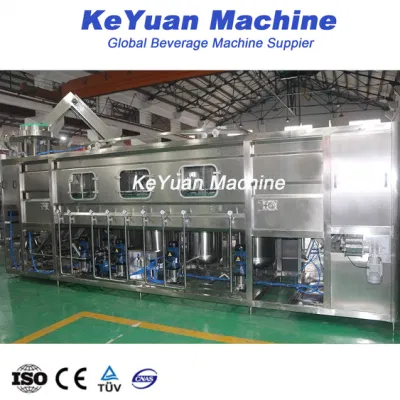

5 Gallon Water Filling Machine
QGF-900 automatic filling machine is our company introduced German company's advanced technology and process, through technical improvement and production of automatic filling production line, is one of the world's most advanced water filling equipment. The machine body is all made of 304 stainless steel material, other parts are also made of non-toxic and durable series materials, electrical and pneumatic systems are made of imported components. Such as: Japan's PLC, inverter, France contactor, Taiwan pneumatic components. Therefore, the failure rate of the equipment is low and the reliability is high.
Washing Unit
1.In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly.
2.There are five or seven flushing process: First, second steps are disinfectant, the third step: drip dry, four step: recycling
water inside and outside rinsing, five step: pure water and drip dry.
2.There are five or seven flushing process: First, second steps are disinfectant, the third step: drip dry, four step: recycling
water inside and outside rinsing, five step: pure water and drip dry.

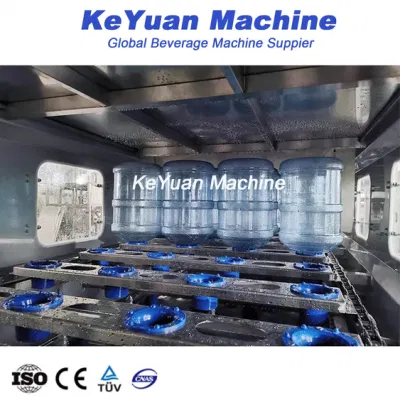

Filling Unit
1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by
different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by
different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Capping Unit
1. Liquid level difference is controlled in 1cm.
2. Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3. Customers can choose to equip ABB/SEW motor, water pump, pneumatic component.
2. Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3. Customers can choose to equip ABB/SEW motor, water pump, pneumatic component.
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Capacity(For 5 Gallon) | 150BPH | 300BPH | 450BPH | 600BPH | 900BPH | 1200BPH |
| Bottle diameater | 18.9L bottle(5 Gallon) | |||||
| Compressed air pressure | 0.3-0.7MPa | |||||
| Bottle washing medium | Sterile water | |||||
| Rinsing pressure | >0.06Mpa <0.2Mpa | |||||
| Application | water bottling plant sale | |||||
| Machine power | 1.5kw | 3.8kw | 4.5kw | 5.2kw | 6.2kw | 7.8KW |
| Machine size | 3000*650*1800 | 6500*1000*2200 | 6500*1300*2200 | 6500*2000*2200 | 6500*2000*2200 | 6500*2000*2200 |
| Weight(kg) | 350kg | 1500kg | 2000kg | 2500kg | 2800kg | 3500 |
Drinking Water Treatment Equipment
Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,
Cap Removing Machine
If your bottle is a recycling bottle and with a cap on it , this device can help you remove the cap from the bottle.
Outside&Inside Brushing Machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the
settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
Main 5 Gallon Filling Machine Features.
1. Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.
2. The thickness of the stainless steel plate which used for 600bph is 3mm.
3. Tank and the heating pipe in tank are removable which become more clean sanitation.
perfect appearance also reduces the leakage.
2. The thickness of the stainless steel plate which used for 600bph is 3mm.
3. Tank and the heating pipe in tank are removable which become more clean sanitation.
Automatic Bagging Machine
It is mainly a new equipment designed for the company to automatically coat the finished water in the 5 gallon drum production line and keep the drum clean. The drum in and out of the machine without personnel operation can complete the automatic coat, saving 1-2 labor, and effectively improve the efficiency of the whole production line.
Barreled Water Palletizer
New CNC five gallon bucket water automatic palleting equipment and through continuous improvement and innovation, so that the equipment to achieve a higher cost performance, the equipment covers an area of less, low operating costs, per hour can be 1500 barrels of five gallon bucket water bottles stacked into one to three layers (each layer 4*4=16 barrels or 4*5=20 barrels or customized), in order to facilitate transportation and storage.
Factory Design Product Design
Provide OEM Factory Design According to your facotry Design your dreamed final products
Before Sales
1.Answer your any question on us with in 24 hours.
2.Supply all information you required.
3.Help building reasonable factory
4.Machines video for reference.
5.Welcome to visit factory.
2.Supply all information you required.
3.Help building reasonable factory
4.Machines video for reference.
5.Welcome to visit factory.
After Sales
1.Update production progress each week.
2.Sending machines pictures on production .
3.Machines testing running over 8 hours, and sending testing videos.4.engineer arranged to install machines.
5.Spare Parts provided.
2.Sending machines pictures on production .
3.Machines testing running over 8 hours, and sending testing videos.4.engineer arranged to install machines.
5.Spare Parts provided.
Beverage Mixing System
Capacity:3000L/H
All the equipments are customized by tech requirements.
5 Gallon Water Production Line
Capacity:1200 Barrels/Hour
Complete 5 Gallon recycled Barrel water production line.
Carbonated Juice Packing Plant
Capacity:20000BPH
Carbonated juice pet bottle filling plant.
Pure Water Treatment System
Capacity:20000L/H
Designed according to raw water quality.
A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 10 years experience. Factory covers an area of 6000 square. There have been more than 30 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in sanxing yucai road.Jinfeng town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us !
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical
support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment
supply;bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training;etc
Give me the basic information about you want:
1.what kind products will you produce: water, juice, with gas or others.
2.what is your capacity you want: that how many bottles per hour you want
3.what kind of the bottle: pet bottle or glass bottle; bottle volume; bottle sharp. bestly give me the bottle picture.
4.the single machine or the whole line.
So that I can make suitable proposal for you.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in sanxing yucai road.Jinfeng town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us !
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical
support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment
supply;bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training;etc
Give me the basic information about you want:
1.what kind products will you produce: water, juice, with gas or others.
2.what is your capacity you want: that how many bottles per hour you want
3.what kind of the bottle: pet bottle or glass bottle; bottle volume; bottle sharp. bestly give me the bottle picture.
4.the single machine or the whole line.
So that I can make suitable proposal for you.
