Basic Info.
Model NO.
310PS-100032B-13
Maximum Load
120kg
Super Synthetic Rubber TPR
Precision Ball Bearing
Easy Coloring
Quiet Operation
No Noise Interference
Corrosion Resistant
Used for Both Inside and Outside
Application Medical, Electronics, Electrical,
Electrical Appliances
Application for Shopping Cart
-50 - 115
80 - 130 Kg
Transport Package
Carton Box
Specification
SGS
Trademark
WANDA
Origin
Jiangsu, China
HS Code
87169000
Production Capacity
1200000/Year
Product Description
Introduction:
Material: super synthetic rubber TPR
Bearing: precision ball bearings
Advantages: easy coloring, stable, quiet operation, no noise interference
Resistant: Corrosion resistant, used for both inside and outside
Application: Medical, electronics, electrical appliances, shopping cart
Using the temperature range between: -50 -115
Wheel Dia. In. / mm | Wheel Width W(mm) | Load Cap. (kg) | Wheel Material Description Tread / Hub | Wheel Bearing Type | Swivel Radius E(mm) | Overall Height H(mm) | Top plate Caster Model No. | |||
Rigid Caster | Swivel Caster | |||||||||
3" 75mm | 37 | 120 | Cast iron wheel | Plain | 30 | 101 | 310PF-075037P-01 | 310PS-075037P-02 | ||
31 | 75 | Black rubber wheel | Plain | 30 | 101 | 310PF-075031P-02 | 310PS-075031P-03 | |||
31 | 80 | Black PP wheel | Plain | 30 | 101 | 310PF-075037P-05 | 310PS-075037P-06 | |||
38 | 100 | Black PP wheel | Plain | 30 | 101 | 310PF-075038P-05 | 310PS-075038P-06 | |||
38 | 100 | Phenolic wheel | Plain | 30 | 101 | 310PF-075031P-06 | 310PS-075031P-07 | |||
38 | 90 | Rubber on iron | Plain | 30 | 101 | 310PF-076038P-12 | 310PS-076038P-13 | |||
4" 100mm | 31 | 80 | Black rubber wheel | Plain | 32 | 133 | 310PF-100032P-02 | 310PS-100032P-03 | ||
32 | 90 | Black PP wheel | Plain | 32 | 133 | 310PF-100031P-05 | 310PS-100031P-06 | |||
38 | 100 | Phenolic wheel | Plain | 32 | 133 | 310PF-100038P-06 | 310PS-100038P-07 | |||
5" 125mm | 31 | 90 | Black rubber wheel | Plain | 35 | 155 | 310PF-125031P-02 | 310PS-125031P-03 | ||
32 | 100 | Black PP wheel | Plain | 35 | 155 | 310PF-125032P-05 | 310PS-125032P-06 | |||
38 | 100 | Phenolic wheel | Plain | 35 | 155 | 310PF-125038P-06 | 310PS-125038P-07 |

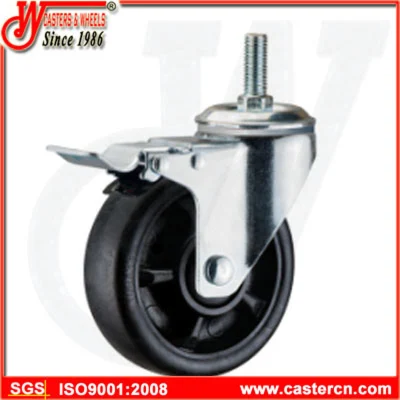

![5 Inch Swivel PP Caster with Side Brake](http://img6.grofrom.com/www.ruicicastersupply.com/226f3j00zQNahqsghrcJ/5-Inch-Swivel-PP-Caster-with-Side-Brake.webp)

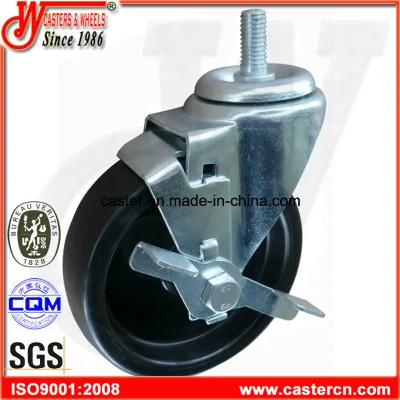

![5 Inch Swivel PP Caster with Side Brake](http://img6.grofrom.com/www.ruicicastersupply.com/226f3j00HQPaUgRlUYfo/5-Inch-Swivel-PP-Caster-with-Side-Brake.webp)
